STONEX R2
42
Using the quick code function, a predefined code can be called up directly via numeric
keypad on the instrument. The code is selected by entering a two digit number, the
measurement is triggered and the measured data and code saved.
A total of 100 codes can be assigned; you may create codes with “Codelist Manager”
provided by STONEX Company, and transfer to the instrument. Each code can be
assigned a unique one or two digit number in the “Codelist Manager”.
If no numbers are allocated to the codes in “Codelist Manager”, the code is selected in
accordance with the order in which the codes were entered in the code list (e.g.: 01->: first
code in the code list. 10-> tenth code in the code list). About the coding format please
refer to appendix A.

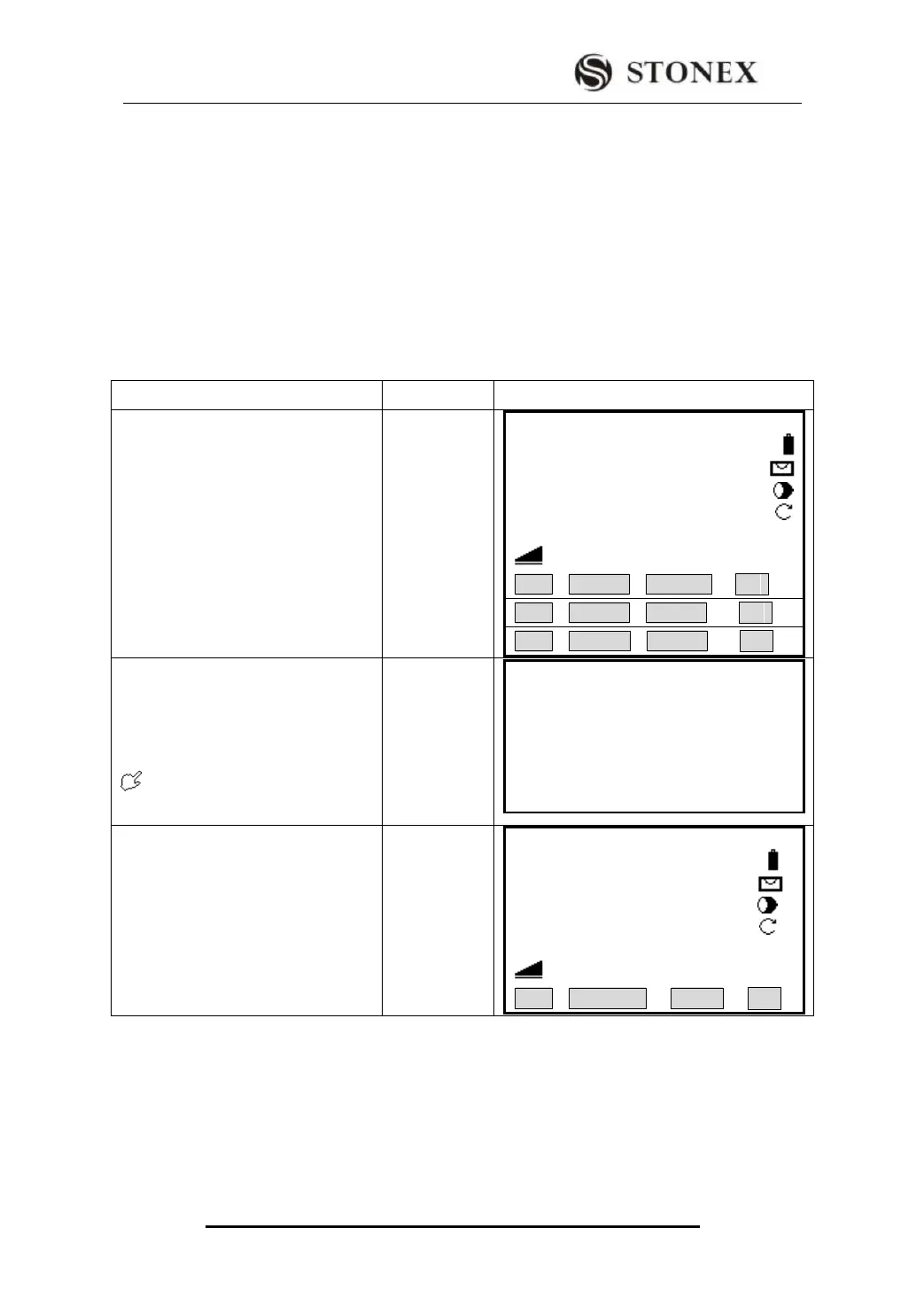

OPERATIONAL STEPS
OPERATION
DISPLAY
①Collimate the prism center of the
target point, and input pointID and
prism height, press[PAGE] to display
measure page of 3/4，press [F4](↓) to
display the third page soft key
Collimate to
the target
point +
Input PtID,
RHT +
[PAGE]
+ [F4]
【Measure】 3/4
Pt ID： A1
Code ： --- --- CODING
RHT： 1.500 m
HZ： 63°40′50″
V： 94°33′51″ Ⅰ
： ---.--- m
All DIST RECORD ↓
All CODE EDM ↓
All Q-CODE EDM |←
②Press [F2](Q-CODE) to start quick
code function. Screen prompts „Q-code
active!‟ and then return to measure
page of 3/4.
Press [F2] again, and shut Q-CODE
function.
[F2]
Q-code active!
③ The serial number of the input
quick coding in internal memory is a 2
digit number. ‴1)
Input the
serial number
of Q-CODE
【Measure】 3/4
Pt ID： A1
Code : --- --- CODING
RHT： 1.500 m
HZ： 63°40′50″
V： 94°33′51″ Ⅰ
： ---.--- m
All Q-CODE EDM ∣←
