ServicingtheBladeSpindle(GroundsmasterSeriesCuttingUnits)

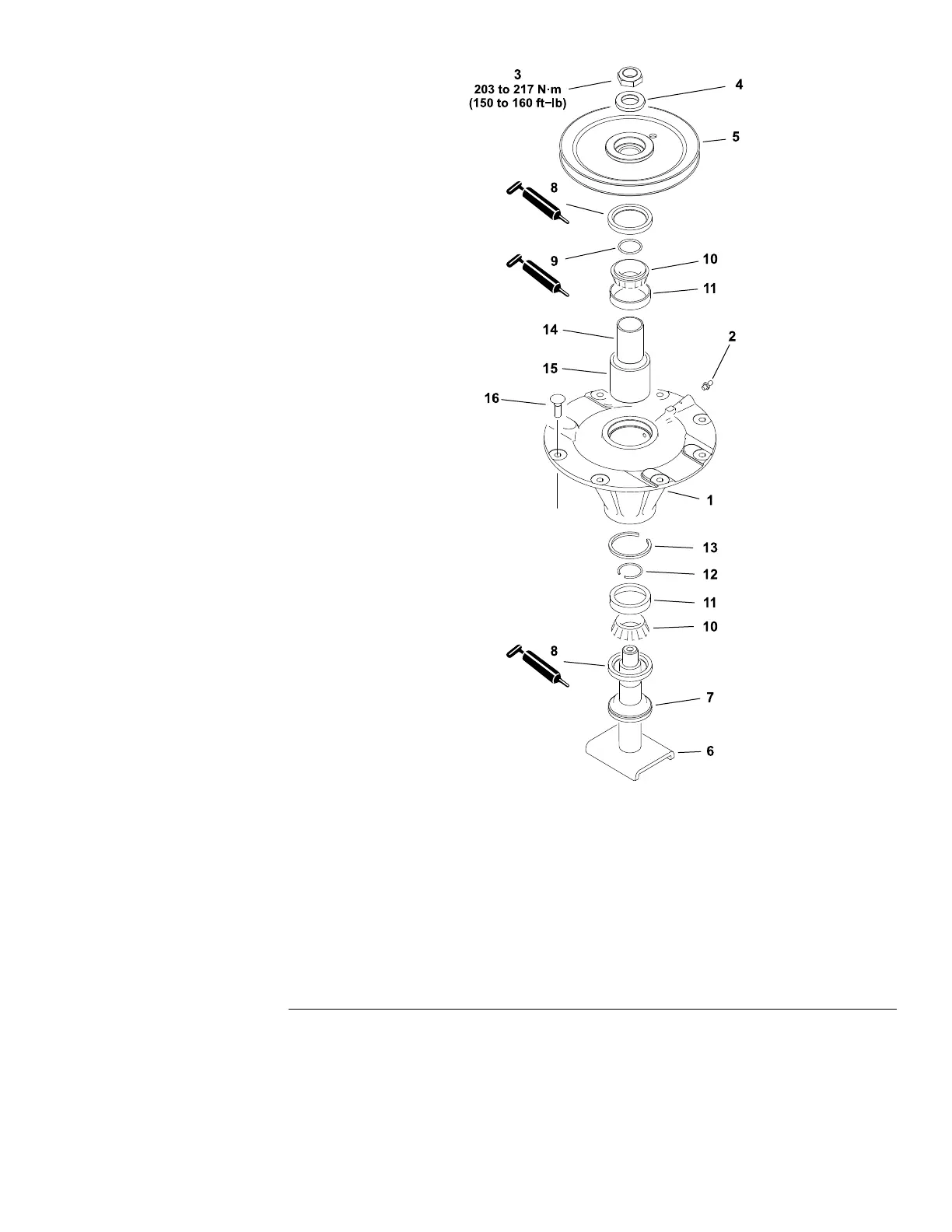

g315871
Figure135
1.Spindlehousing9.O-ring
2.Greasetting10.Bearingcone(2each)
3.Locknut
11.Bearingcup(2each)
4.Hardenedwasher
12.Spacerring
5.Pulley13.Largesnapring
6.Spindleshaft
14.Innerbearingspacer
7.Spindlespacer15.Outerbearingspacer
8.Seal(2each)16.DriveStud(8each)
BladespindlesforGroundsmasterseriescuttingunitshavecastironspindle
housings,greasablerollerbearings,31.7mm(1.25inch)spindleshafts,anti
scalpcups,andaredesignedtouse6.3mm(0.25inch)thickblades.
DisassemblingtheBladeSpindle
RefertoFigure135forthisprocedure.
