CastorWheels
g315376

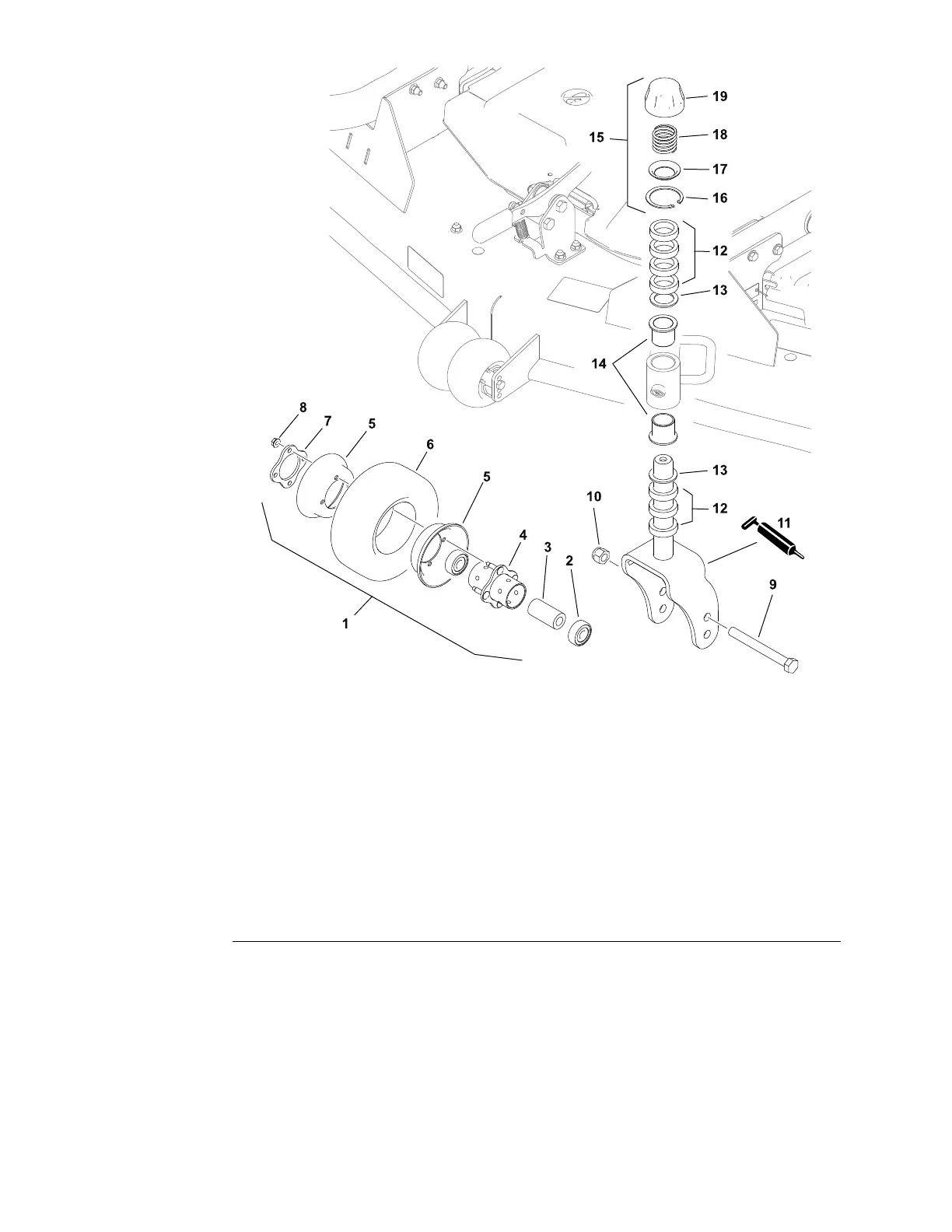

Figure144
1.Casterwheelassembly11.Castorfork
2.Bearing(2each)12.Spacer(7each)
3.Bearingspacer
13.Thrustwasher(2each)
4.Wheelhub
14.Flangebushing(2each)
5.Wheelrimhalf(2each)15.Height-ofCutcapassembly
6.Tire–semi-pneumatic16.Retainingring
7.Plate
17.Capwasher
8.Flangenut(4each)18.Compressionspring
9.Capscrew19.Cap
10.Locknut
ServicingtheCastorWheels
RefertoFigure144forthisprocedure.
1.Parkthemachineonalevelsurface,raisethecuttingunit,engagethe
parkingbrake,setthekeyswitchtotheOFFpositionandremovethekey
fromthekeyswitch.
2.RotatethecuttingunittotheSERVICEposition;refertothetractionunit
Operator’sManual.
CuttingUnits:ServiceandRepairs
Page8–20
Groundsmaster
®
3200,3300and3310
19240SLRevA
