ENGINE
4-85TX525 Service Manual Rev. 000

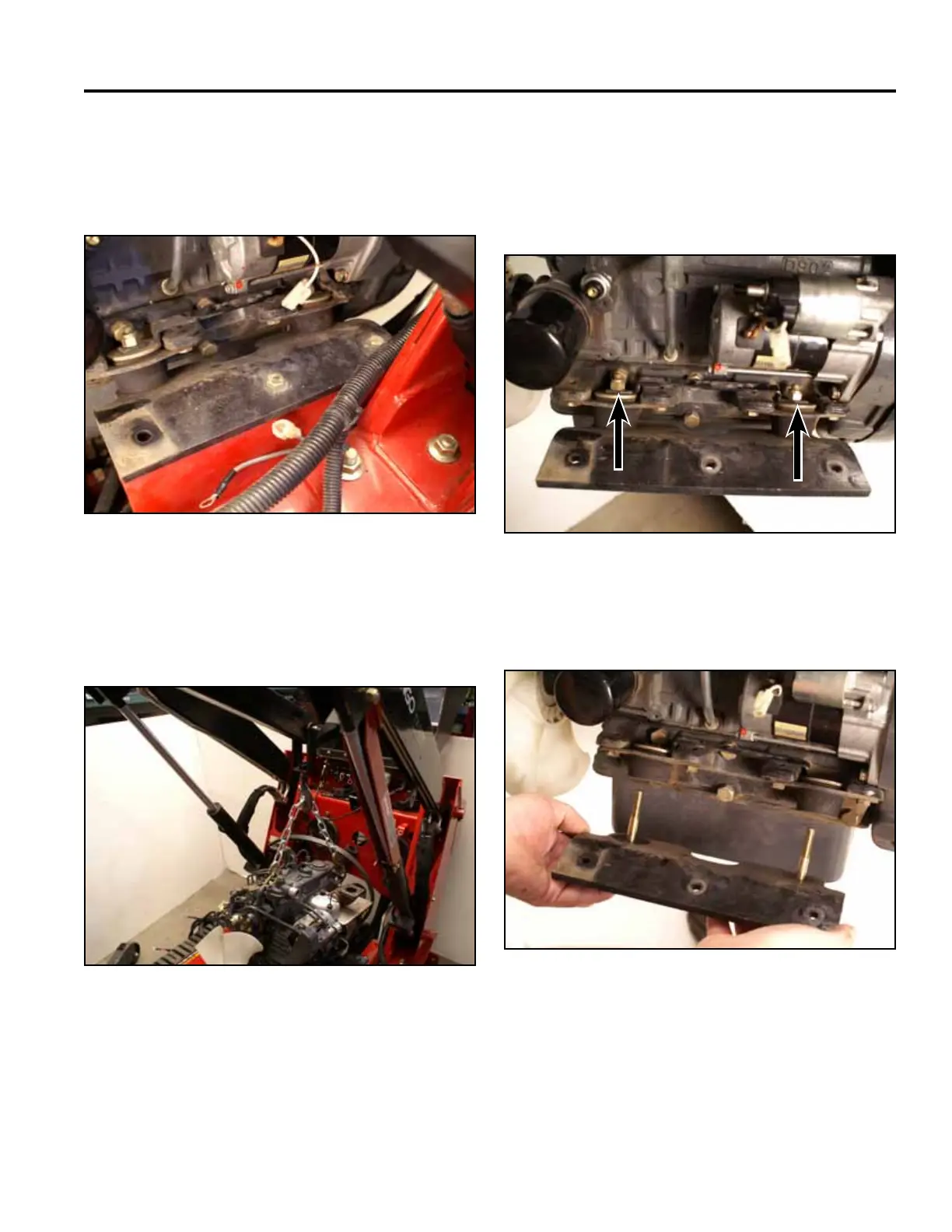

91. Usinga9/16”socketandwrench,removethe
remaining2boltsandnutssecuringthelefthand
sideoftheengineassemblytothemainframe(Fig.
0394).
Fig 0394 PICT-5484
92. Positionandcenteranenginehoistovertheengine.
Attachchainhooksintotheengineliftbrackets(Fig.
0395).
Fig 0395 PICT-5485
93. Liftengineoutoftheframe.
94. Usinga9/16”socketandwrench,removethe2
screwssecuringtheenginemountplatetotheleft
handenginemount(Fig.0396).
Fig 0396 PICT-5487
95. Removetheenginemountplate(Fig.0397).
Fig 0397 PICT-5488
