ENGINE
4-88 Rev. 000 TX525 Service Manual

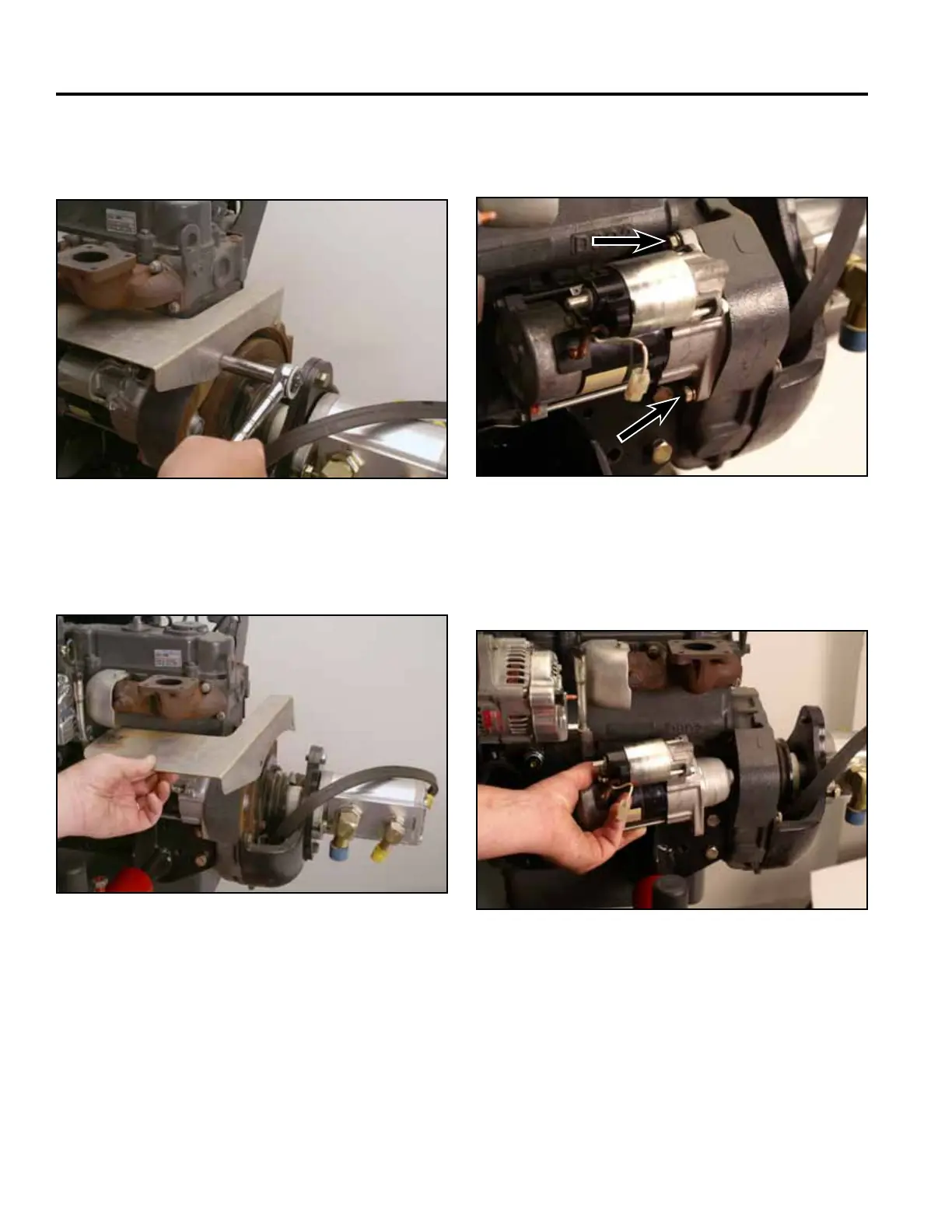

2. Usinga13mmsocket,removethe2screwssecur-
ingthestarterbafeplatetotheengine(Fig.0406).
Fig 0406 PICT-5500a
3. Removethestarterbafeplate(Fig.0407).
Fig 0407 PICT-5501a
4. Usinga12mmsocket,removethe2boltssecuring
thestarterassemblytotheengine(Fig.0408).
Fig 0408 PICT-5504
5. Removethestarterassemblyfromtheengine(Fig.
0409).
Fig 0409 PICT-5506
