ENGINE
4-108 Rev. 000 TX525 Service Manual

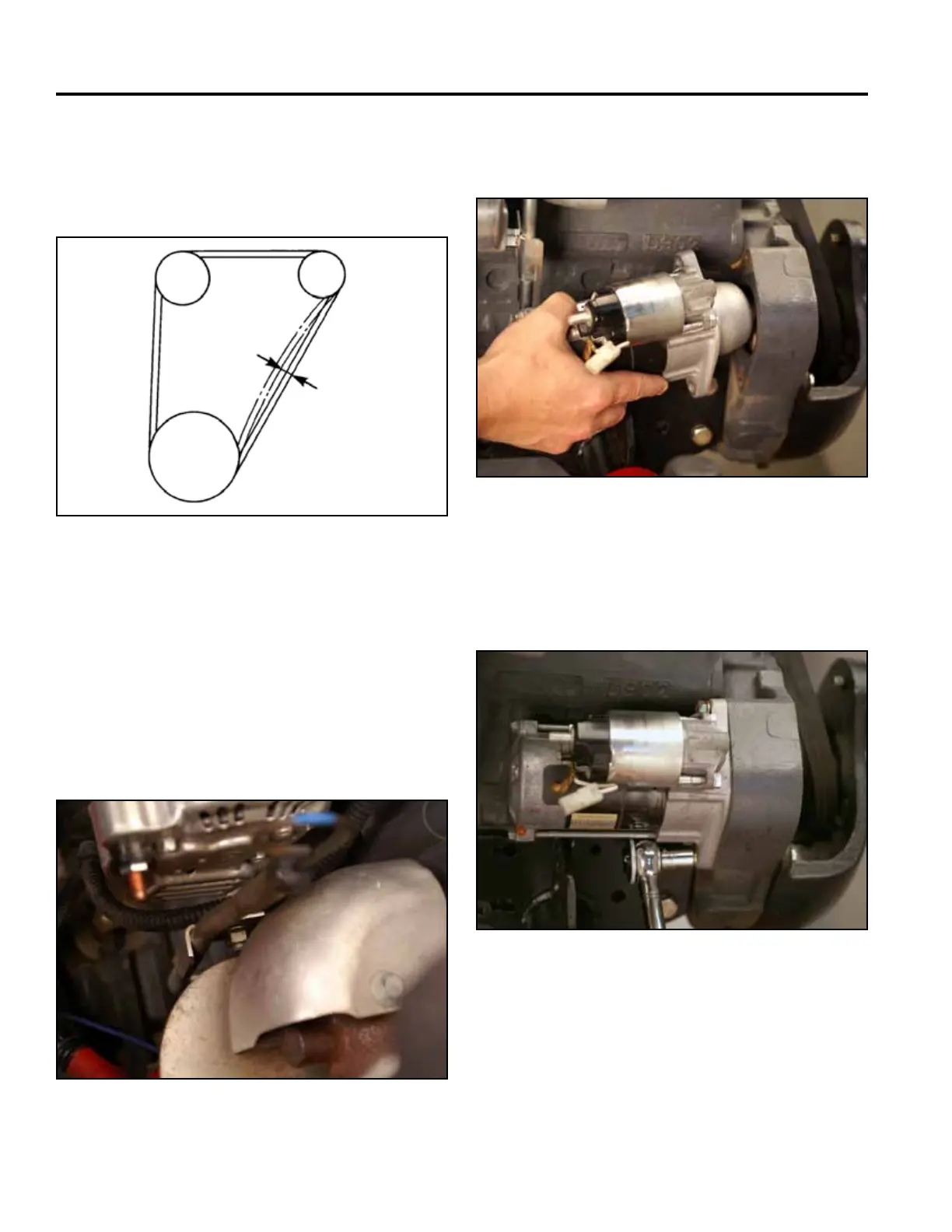

44. Measurethedeection(A)bydepressingthebelt
halfwaybetweenthefandrivepulleyandalternator
pulleyatthespeciedforceof22lbs.(98N,10kgf)
(Fig.0484).
45. Ifthedeectionmeasurementisnotwithinthefac-
toryspecications,loosenthealternatormounting
screwsandrelocatethealternatortoadjust.
46. Usinga12mmsocketanda9/16”wrench,tighten
thenutsecuringthehexspacertotheengineoil
dipstick(Fig.0485).
Fig 0484 g.3EEAB...17B
Fig 0485 PICT-5170
A. .28-.35”(7–9mm)
A
47. Positionthestarterassemblyintotheengine(Fig.
0486).
Fig 0486 PICT-5566
48. Usinga12mmsocket,install2boltsandlock-
washerssecuringthestarterassemblytotheengine
(Fig.0487).
Fig 0487 PICT-5567a
