Toro TX525 - Page 198

ENGINE
4-145TX525 Service Manual Rev. 000
6. Supportthehoodandremovetheproprod(Fig.
0627).

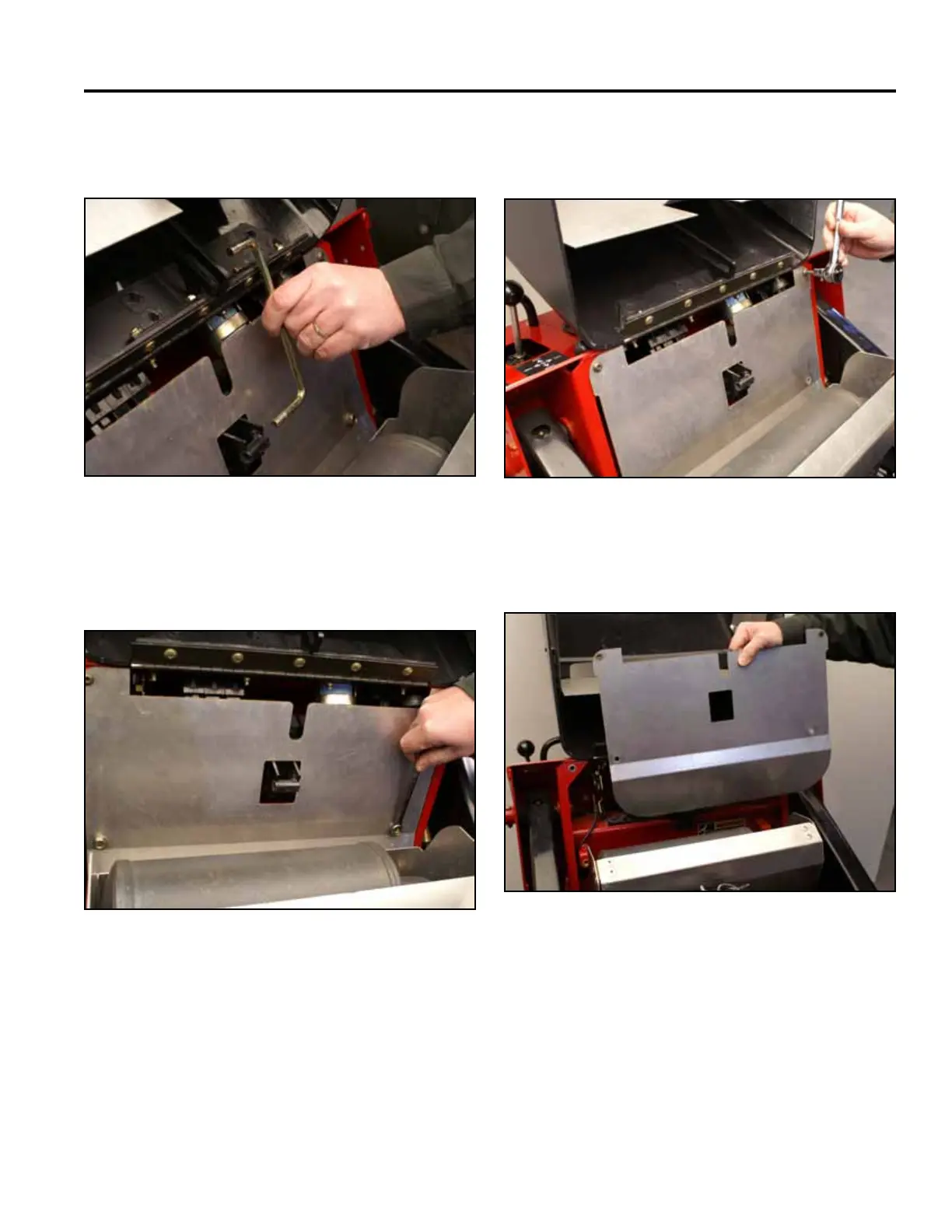

Fig 0627 PICT-7128
7. Usinga1/2”wrench,removethe2lowerheatshield
screws(Fig.0628).
Fig 0628 PICT-7129
8. Usinga3/16”Allenwrench,removethe2upperheat
shieldscrews(Fig.0629).
Fig 0629 PICT-7132
9. Removetheheatshield(Fig.0630).
Fig 0630 PICT-7133
