ENGINE
4-146 Rev. 000 TX525 Service Manual

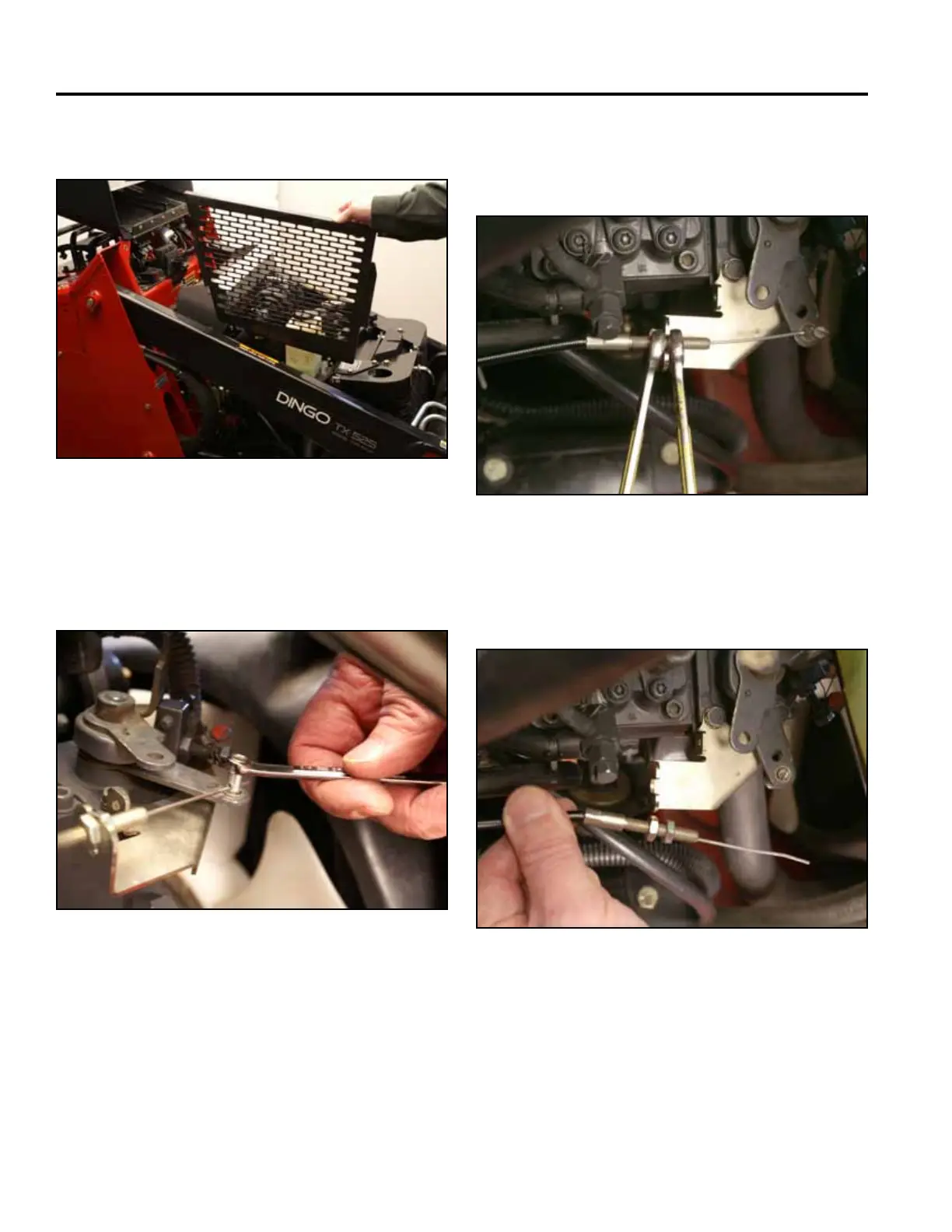

10. Removetherighthandsidepanel(Fig.0631).
Fig 0631 PICT-7138
11. Movetheairintakehoseoutofthewayofthe
throttleplate.Usinga1/4”wrench,loosenthe
throttlecableswivel(Fig.0632).
Fig 0632 PICT-7140
12. Usingtwo7/16”wrenches,loosentheadjustingnuts
securingthethrottlecabletothethrottleplate(Fig.
0633).
Fig 0633 PICT-7143a
13. Removethethrottlecablefromthethrottleplateand
slidethecableoutoftheswivel(Fig.0634).
Fig 0634 PICT-7150a
