ENGINE
4-148 Rev. 000 TX525 Service Manual

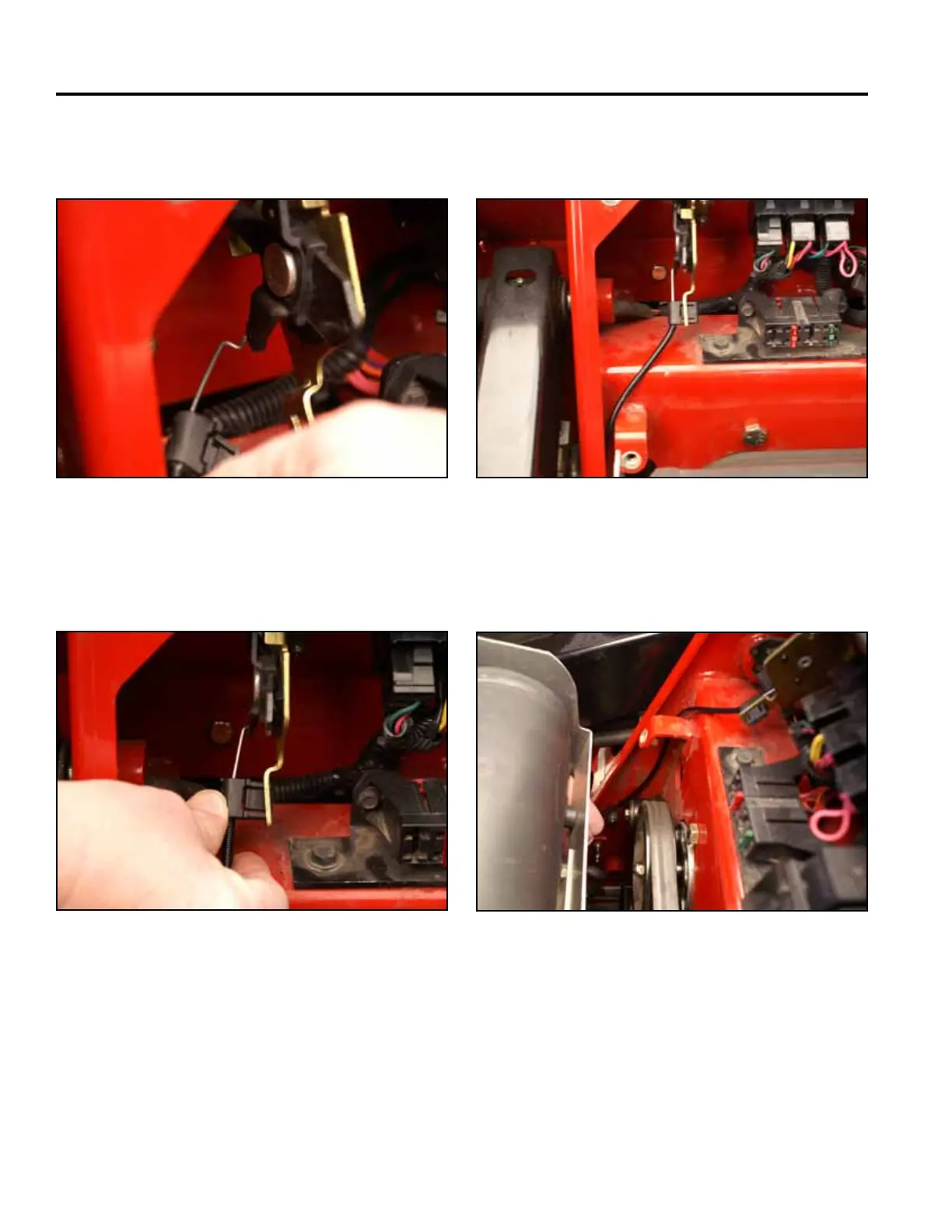

2. Insertthethrottlecablez-bendintothethrottle
controlhandlelinkage(Fig.0639).
Fig 0639 PICT-7155
3. Installthethrottlecableclip/retainerintothethrottle
controlhandlelinkagetosecure(Fig.0640).
Fig 0640 PICT-7160
4. Routethethrottlecabledownthetowertotheright
handsideoftheshieldsupport(Fig.0641).
Fig 0641 PICT-7162
5. Routethethrottlecablebetweenthetowerandthe
idlerarmpivot(Fig.0642).
Fig 0642 PICT-7163
