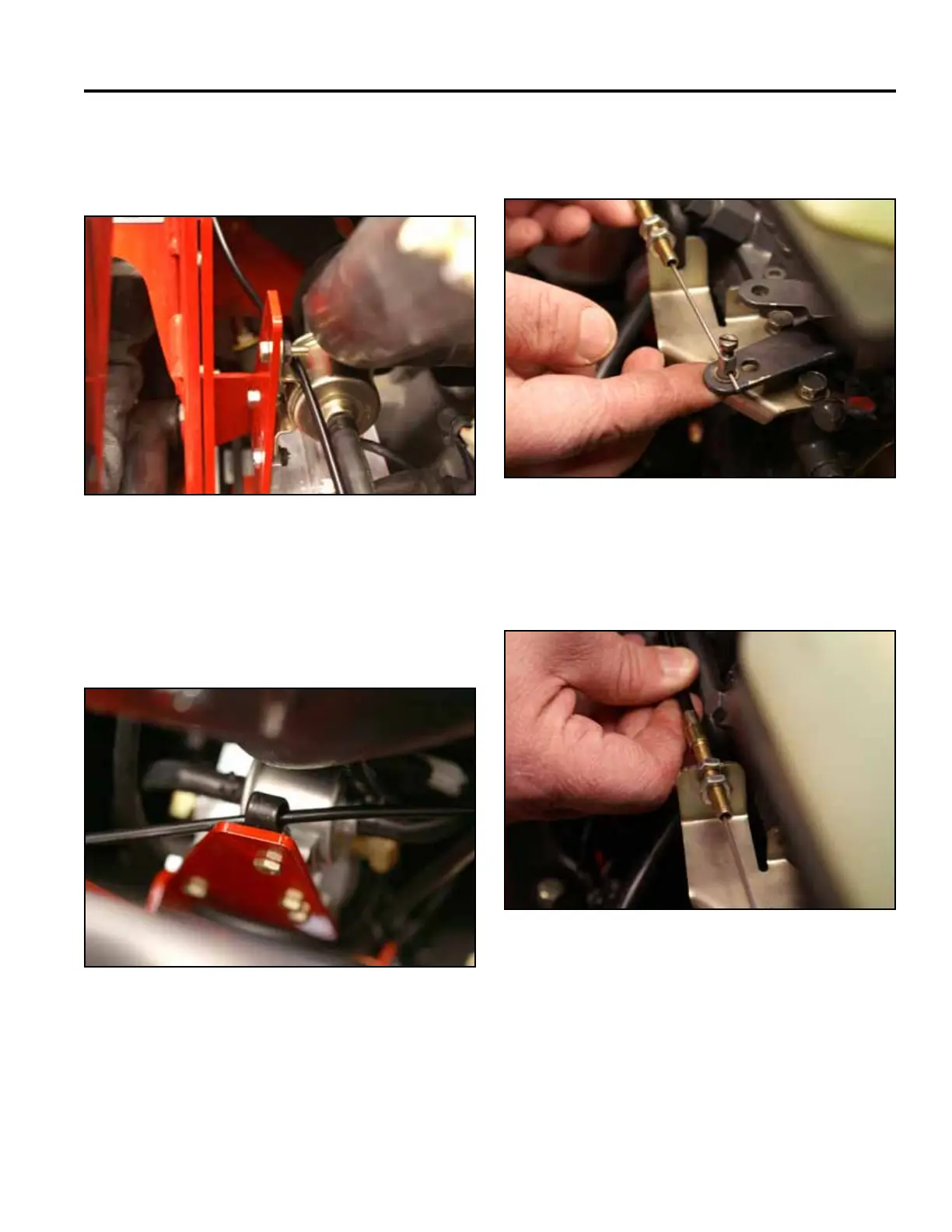

6. Routethethrottlecablebetweenthefuelpumpand
fuelpumpbracket,underthetopmountingbolt(Fig.
0643).
Fig 0643 PICT-7165
Note: Some TX525 models have a rubberized
R-clamp secured to the top fuel pump mount-
ing bolt. The throttle cable is routed through
this R-clamp (Fig. 0644).
Fig 0644 PICT-5583a
7. Inserttheendofthethrottlecablethroughtheswivel
(Fig.0645).
Fig 0645 PICT-7168
8. Insertthethrottlecableintothethrottlebracketso
the2nutsstraddlethebracket(Fig.0646).
Fig 0646 PICT-7169
