HYDRAULIC SYSTEM
6-6 Rev. 000 TX525 Service Manual

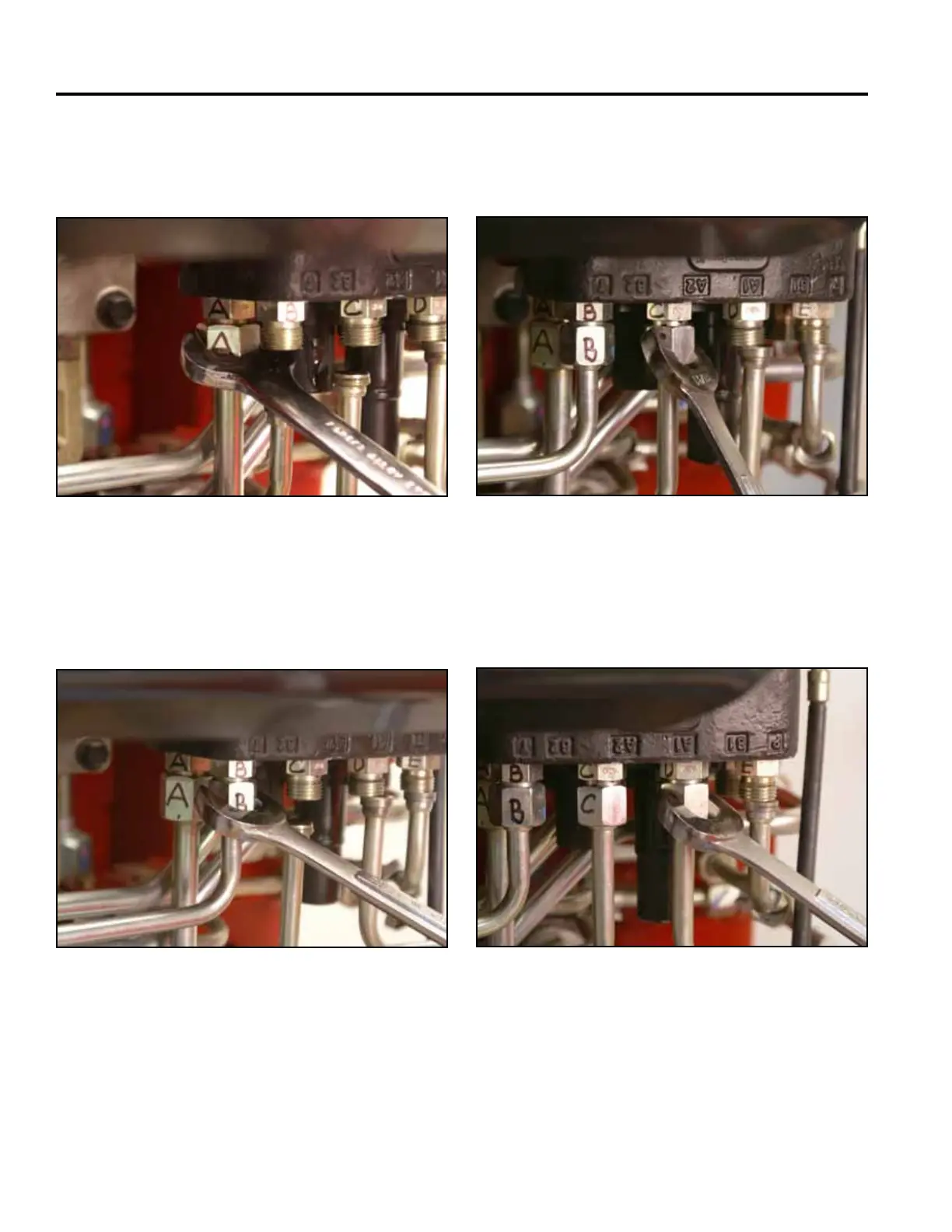

4. Using a 15/16” offset wrench, connect the hydraulic
line marked A to the 2 spool loader valve tting
marked A (Fig. 0850).
Fig 0850 PICT-4886
5. Using a 13/16” wrench, connect the hydraulic line
marked B to the 2 spool loader valve tting marked
B (Fig. 0851).
Fig 0851 PICT-4884a
6. Using a 13/16” wrench, connect the hydraulic line
marked C to the 2 spool loader valve tting marked
C (Fig. 0852).
Fig 0852 PICT-4882a
7. Using a 13/16” wrench, connect the hydraulic line
marked D to the 2 spool loader valve tting marked
D (Fig. 0853).
Fig 0853 PICT-4881a
