HYDRAULIC SYSTEM
6-13TX525 Service Manual Rev. 000

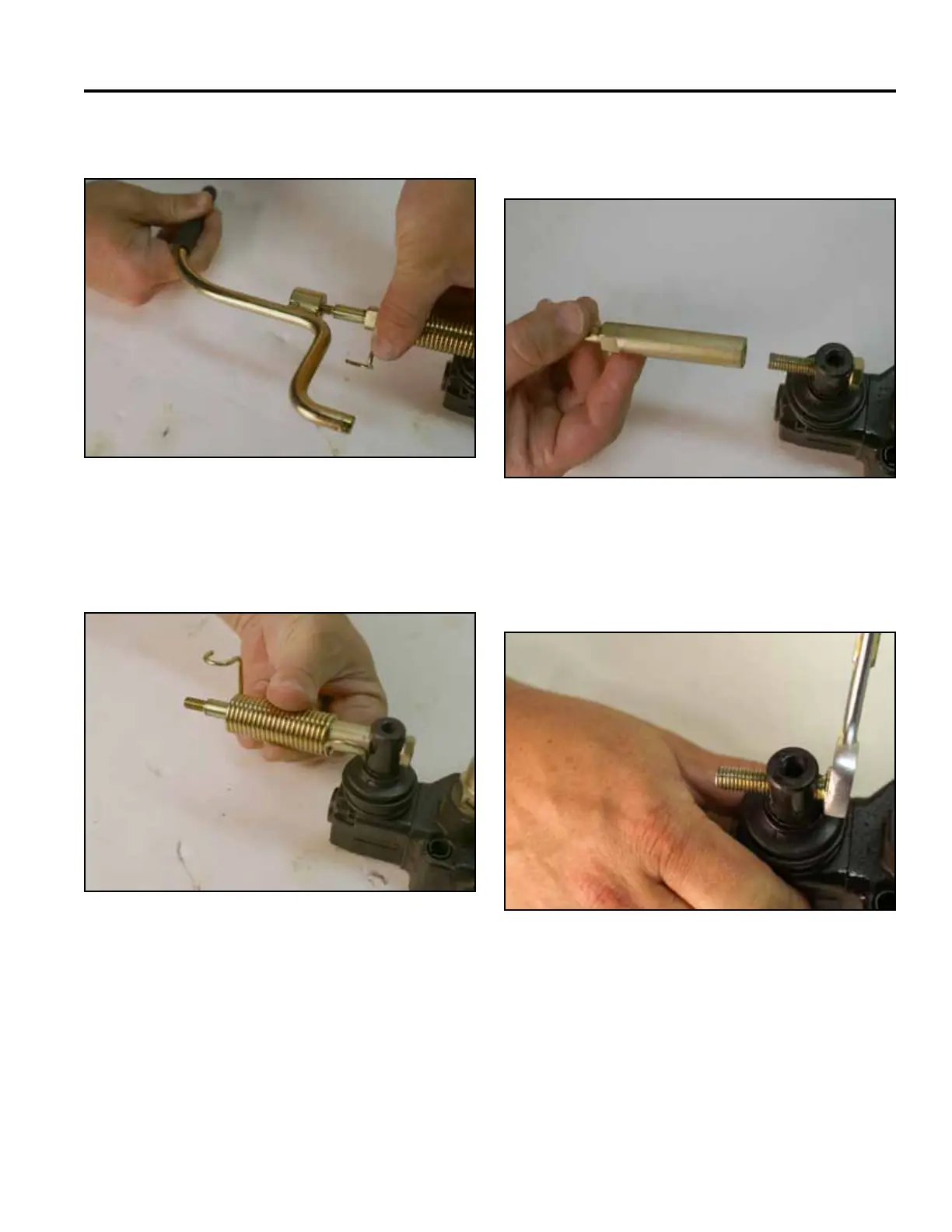

17. Remove the handle from the hio spacer (Fig. 0877).
Fig 0877 PICT-1774a
18. Rotate the spring and remove it from the hio spacer
(Fig. 0878).
Fig 0878 PICT-1775a
19. Using a 7/16” wrench, remove the spacer from the
valve cap screw (Fig. 0879).
Fig 0879 PICT-1777a
20. Using a 1/2” wrench, remove the screw from the
valve cap (Fig. 0880).
Fig 0880 PICT-1778
