HYDRAULIC SYSTEM
6-34 Rev. 000 TX525 Service Manual

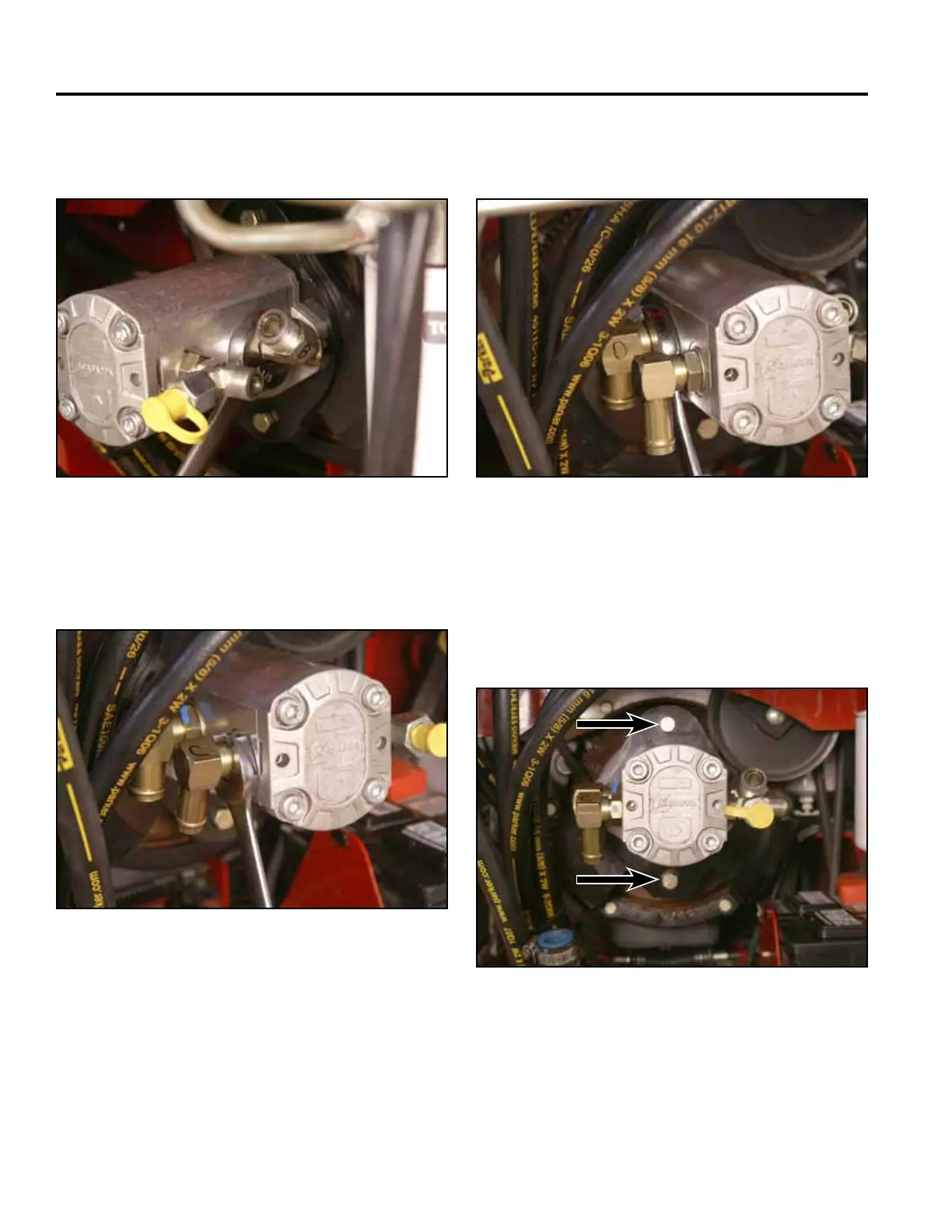

16. Pump pressure line tting marked B using a 1-1/8”
wrench (Fig. 0957).
18. Suction hose tting marked D using a 1-1/4” wrench
(Fig. 0959).
Fig 0957 PICT-4783a
Fig 0959 PICT-4785a
19. Using a 5/8” socket, remove the 2 bolts securing the
pump mount plate to the pump mount (Fig. 0960).
Note: Support the pump as the 2 bolts are being
removed.
17. Suction hose tting marked C using a 1” wrench
(Fig. 0958).
Fig 0960 PICT-4777a
Fig 0958 PICT-4784a
