HYDRAULIC SYSTEM
6-33TX525 Service Manual Rev. 000
11. Using a 1-1/8” wrench, remove the pump pressure
line marked with a B from the hydraulic tandem
pump (Fig. 0953).
13. Slide the suction hoses, marked C and D, off the
suction ttings (Fig. 0955).

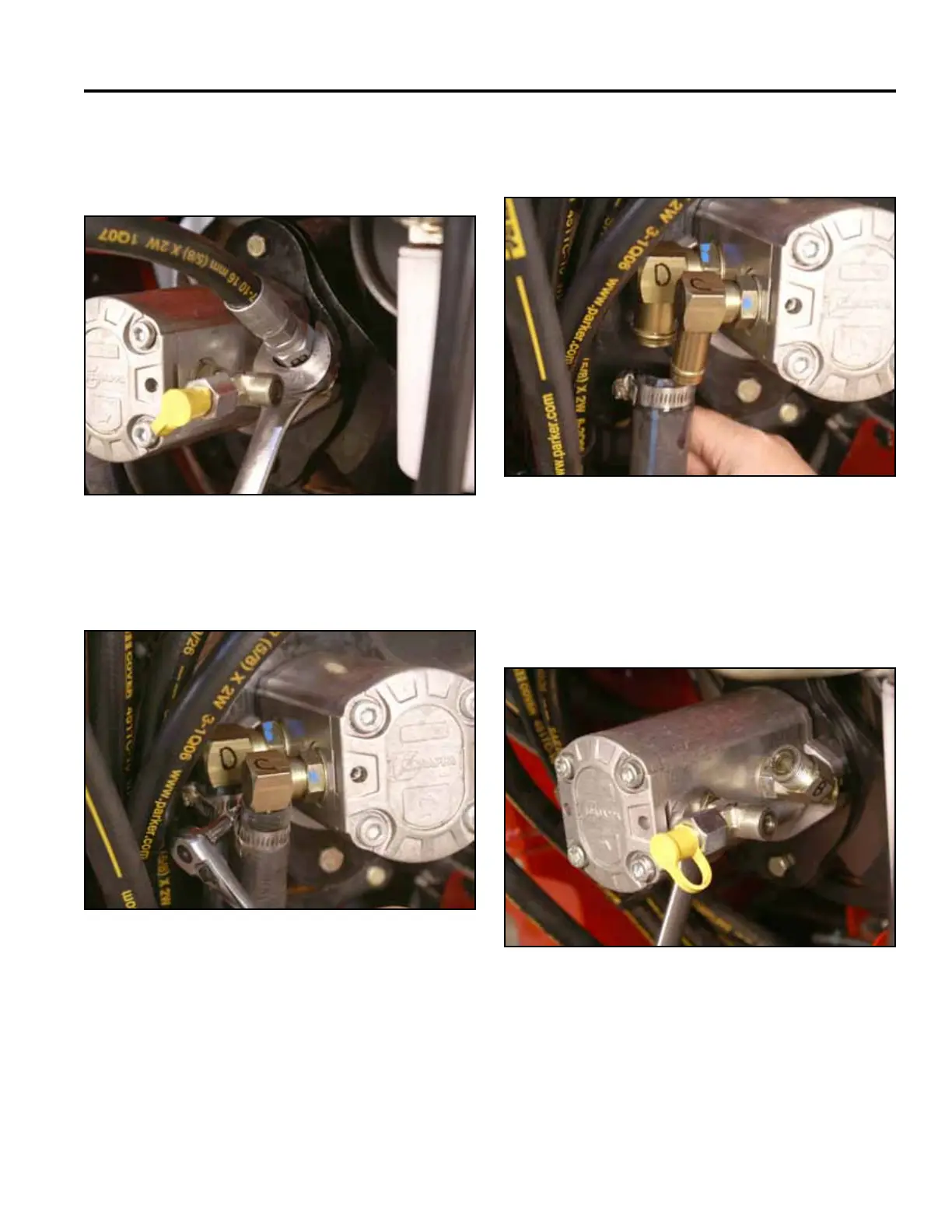

Fig 0953 PICT-4770a
Fig 0955 PICT-4775a
14. Loosen the pump pressure line ttings:
15. Pump pressure line tting marked A using a 15/16”
wrench (Fig. 0956).
12. Loosen the two suction hose clamps (Fig. 0954).
Fig 0956 PICT-4782a
Fig 0954 PICT-4773a
