HYDRAULIC SYSTEM
6-47TX525 Service Manual Rev. 000

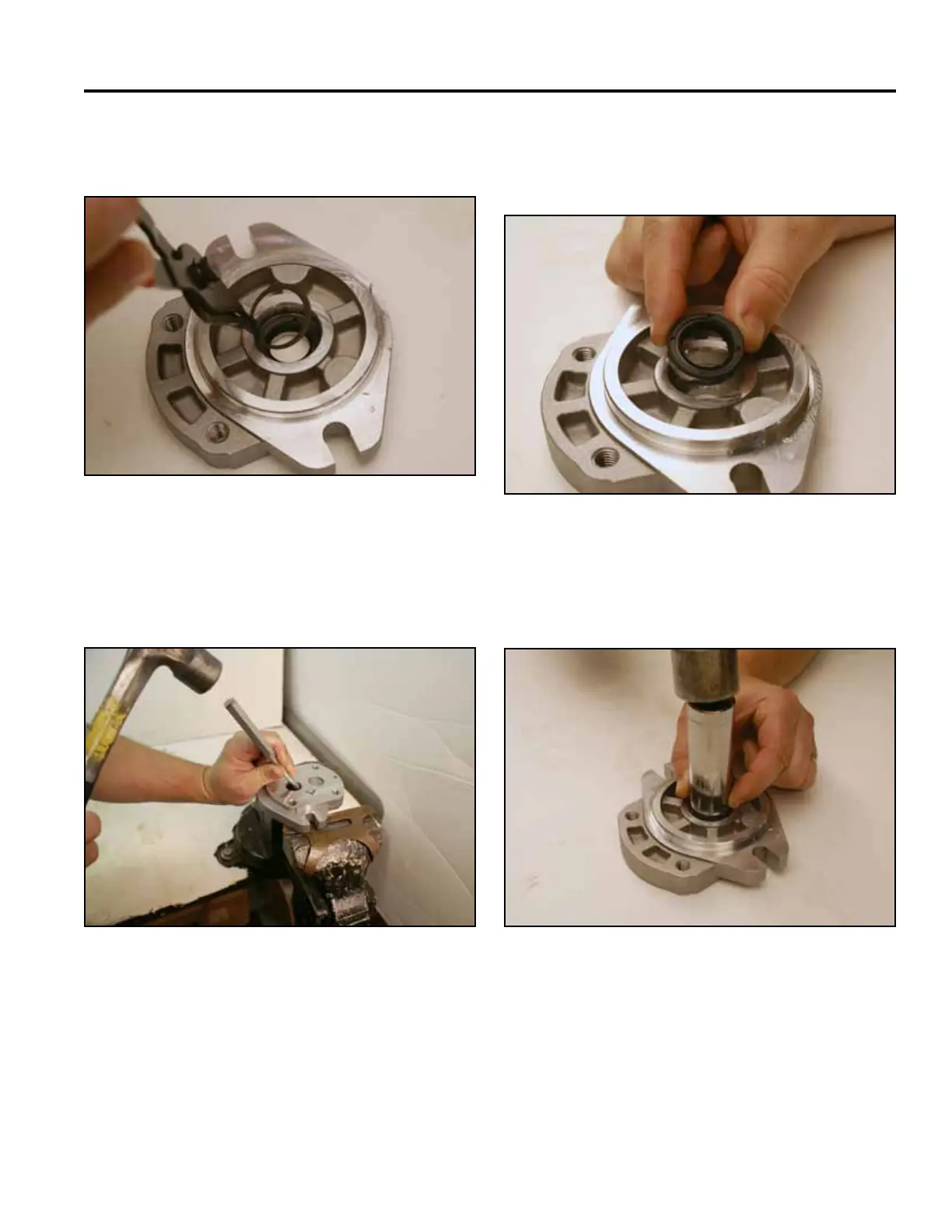

6. Using a snap ring pliers, remove the snap ring from
the pump cover (Fig. 1006).
8. Install a new shaft seal in the pump cover so that the
spring side of the seal is facing the housing side of
the pump cover (Fig. 1008).
Fig 1006 PICT-2842a
Fig 1008 PICT-2844a
7. With the cover secured so the inside of the cover is
facing up, remove the shaft seal from the inside of
the pump cover (Fig. 1007).
9. Carefully drive the seal into the cover until it is
seated (Fig. 1009).
Fig 1009 PICT-2846a
Fig 1007 PICT-2843a
