HYDRAULIC SYSTEM
6-58 Rev. 000 TX525 Service Manual

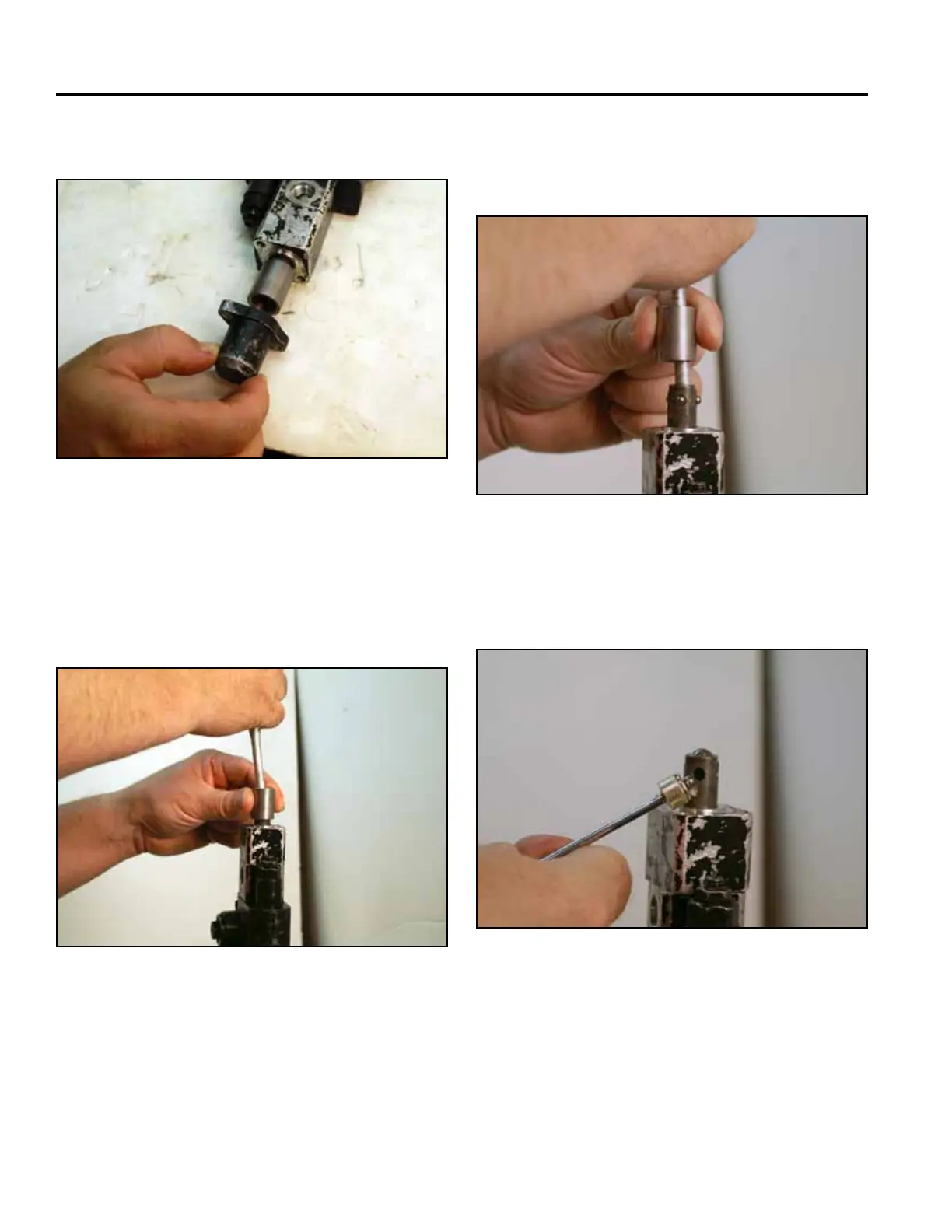

6. While compressing the steel ball, slowly slide the
steel collar up off the detent spring assembly (Fig.
1050).
Fig 1050 PICT-2681a
7. Using a magnet, remove the 4 small steel balls from
the spring retainer (Fig. 1051).
4. Clamp the auxiliary valve in a vise to secure in
place.
5. Using a punch, compress the steel ball in the detent
assembly (Fig. 1049).
Fig 1051 PICT-2683a
Fig 1049 PICT-2680a
3. Remove the return spring cap (Fig. 1048).
Fig 1048 PICT-2679a
