HYDRAULIC SYSTEM
6-65TX525 Service Manual Rev. 000

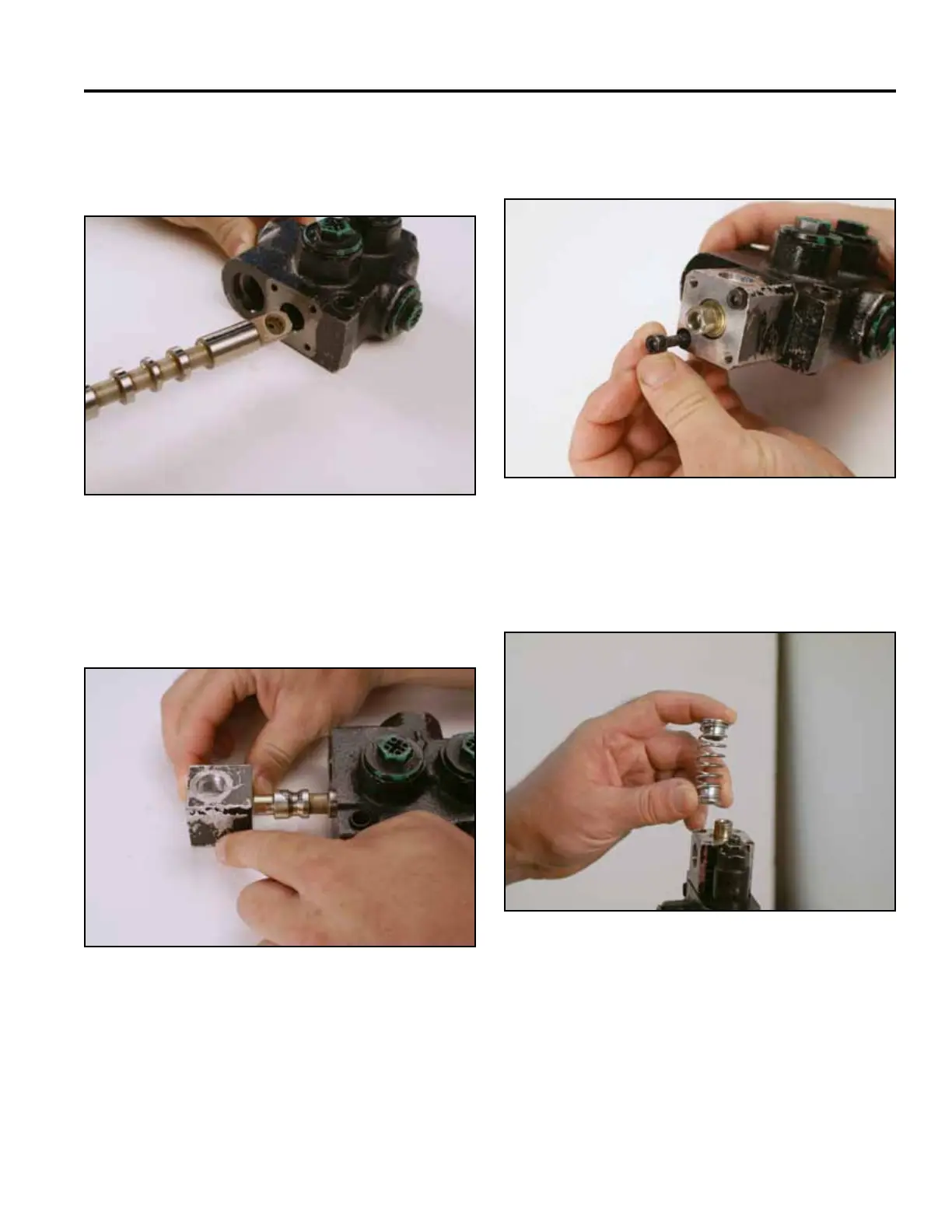

2. Lubricate the spool and o-rings with oil. Install the
spool into the valve body. Turning the spool as it is
being installed to prevent o-ring damage (Fig. 1076).
4. Install the two threaded screws into the switch block
and tighten with 4mm Allen wrench (Fig. 1078).
Fig 1076 PICT-2712a
Fig 1078 PICT-2714a
5. Install the spring with both spring retainers over the
end of the spool (Fig. 1079).
3. Place the valve into a vise. Install the switch block to
the valve assembly. The thicker offset on the switch
block is assembled toward the valve (Fig. 1077).
Fig 1079 PICT-2689a
Fig 1077 PICT-2713a
