HYDRAULIC SYSTEM
6-66 Rev. 000 TX525 Service Manual

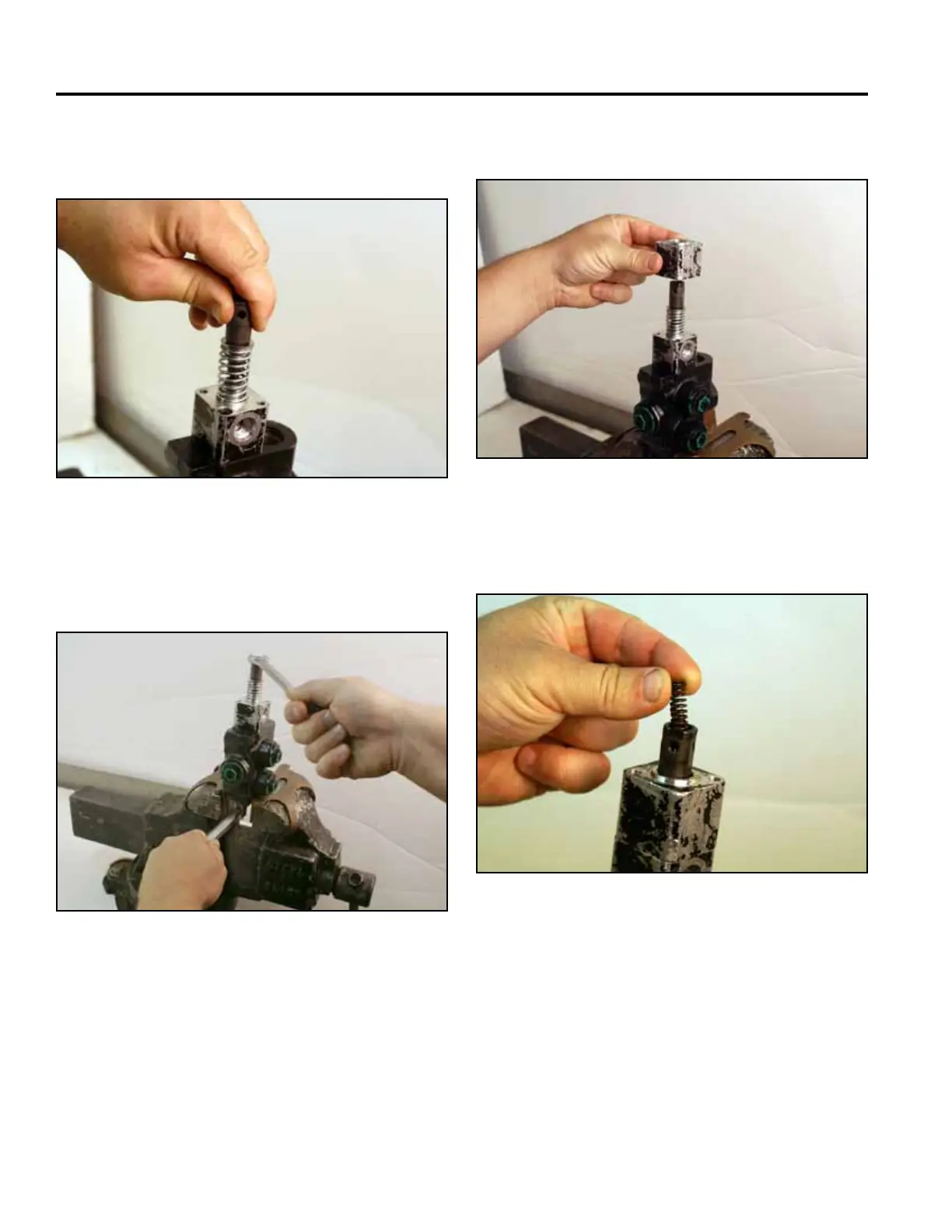

8. Position the spring block over the spring (Fig. 1082).6. Install and thread the spring retainer into the spool
(Fig. 1080).
Fig 1080 PICT-2715a
Fig 1082 PICT-2729a
9. Place the spring into the spring retainer (Fig. 1083).
7. Place a punch into the spool opening and tighten the
spring retainer with a 13mm wrench (Fig. 1081).
Fig 1083 PICT-2732a
Fig 1081 PICT-2716a
