MAINTENANCE
3-11TX525 Service Manual Rev. 000

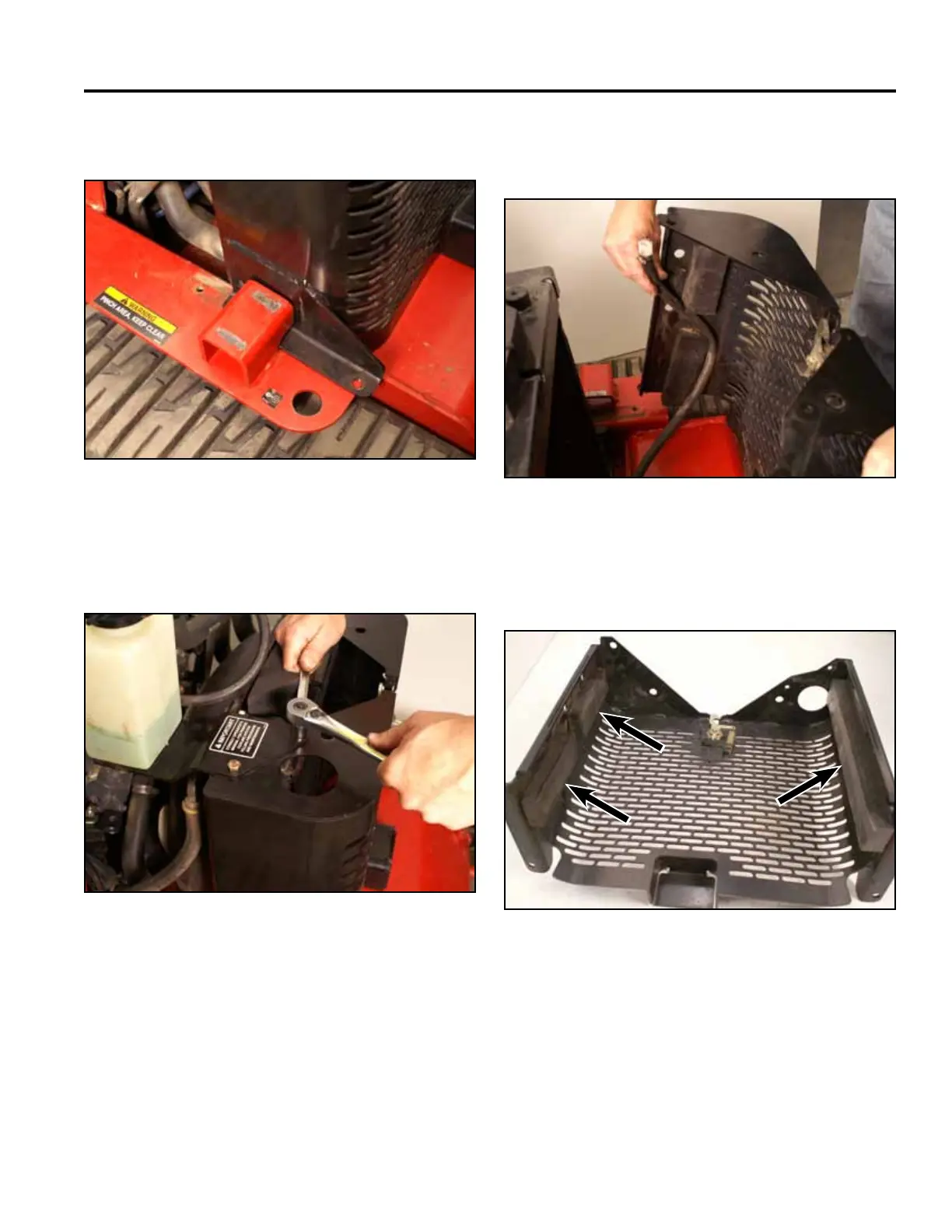

6. Slidethegrillassemblyforward(Fig.0022). 8. Removethegrillassemblytakingcarenottodam-
agethehydraulictankbreatherhose(Fig.0024).
Fig 0022 PICT-4955
Fig 0024 PICT-4961
9. Inspectthefoamsealsontheinsideofthegrillas-
sembly.Replaceifwornordamaged(Fig.0025).
7. Removethe2boltsandnutssecuringtheoverow
tankbrackettothegrillassembly(Fig.0023).
Fig 0025 PICT-5138a
Fig 0023 PICT-4959
