HYDRAULIC SYSTEM
6-78 Rev. 000 TX525 Service Manual

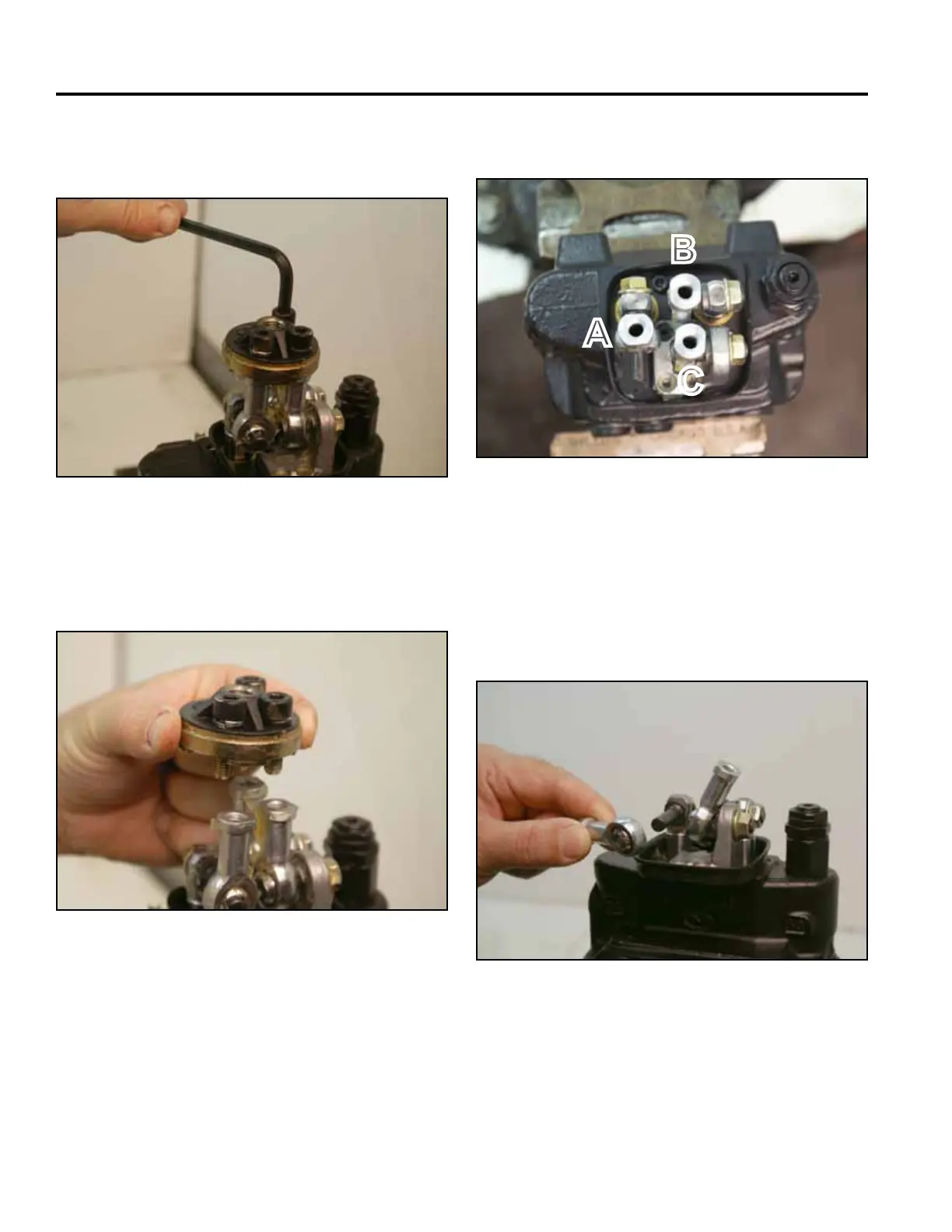

3. Using a 6mm Allen wrench, loosen the 3 hex head
screws and spring lock washers (Fig. 1127).
5. Pictured below are the joystick joints (Fig. 1129).
Fig 1127 PICT-2591a
Fig 1129 PICT-2593a
6. Slide the end rod off the pin of the joystick joint for
the tilt cylinder (Fig. 1130).
4. Remove the articulated holder, screws and washers
from the valve assembly (Fig. 1128).
Fig 1130 PICT-2601a
Fig 1128 PICT-2592a
A. Tilt Cylinder operation
B. Loader Lift Cylinder operation
C. Pivot for Lift and Tilt operation
A
B
C
