HYDRAULIC SYSTEM
6-79TX525 Service Manual Rev. 000

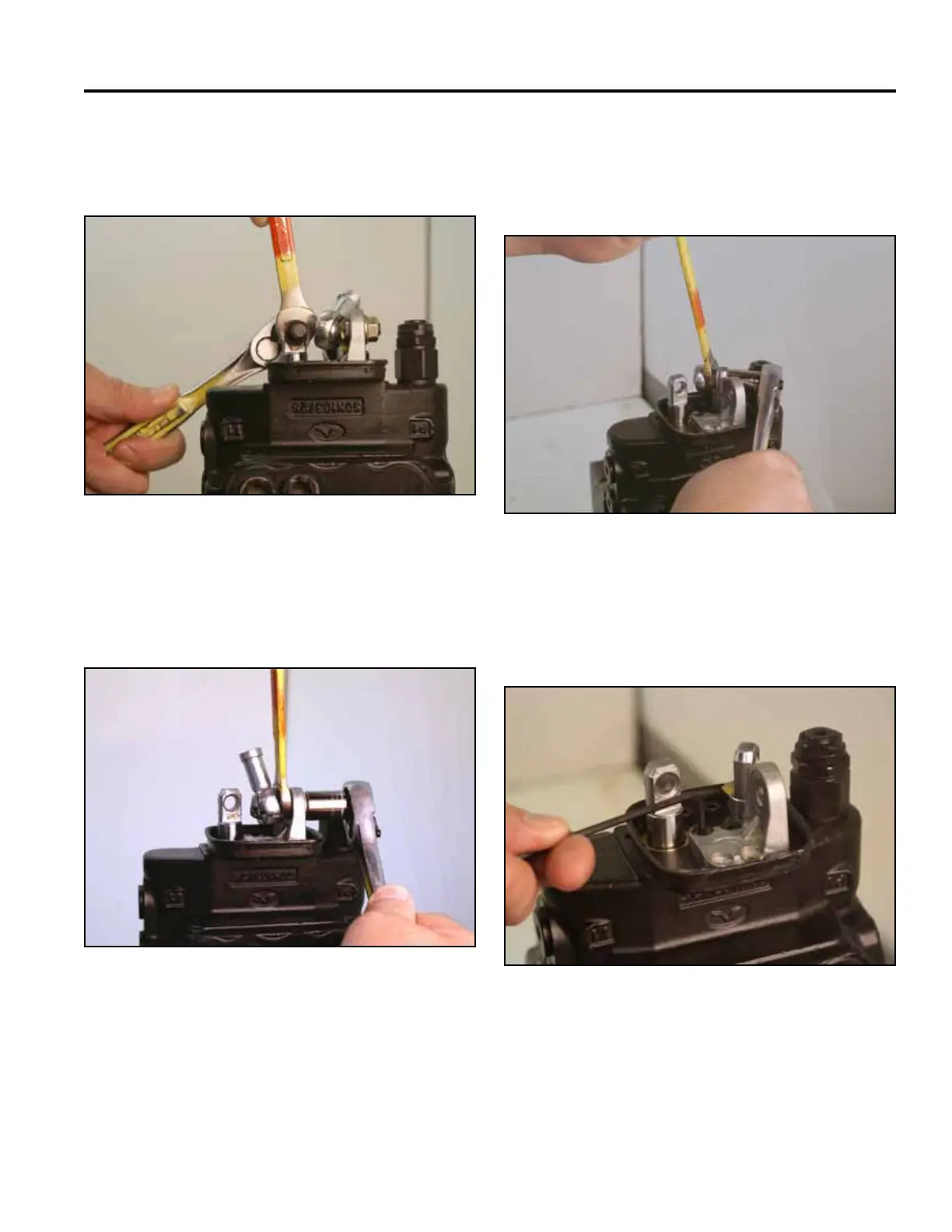

7. Using a 13mm socket and wrench, remove the nut
securing the joystick pin and then remove the pin
(Fig. 1131).
9. Turn the lift pivot. Using a 13mm socket and wrench,
remove the nut holding the joystick pivot joint and
then remove the joint from the lift and tilt spool (Fig.
1133).
Fig 1131 PICT-2607a
Fig 1133 PICT-2609a
10. Using a 3mm Allen wrench, remove the two hex
head bolts securing the joystick pivot to the valve
assembly (Fig. 1134).
8. Using a 13mm socket and wrench, remove the nut
holding the joystick pivot joint and then remove the
pivot for the lift and tilt operation (Fig. 1132).
Fig 1134 PICT-2611
Fig 1132 PICT-2608a
