HYDRAULIC SYSTEM
6-80 Rev. 000 TX525 Service Manual

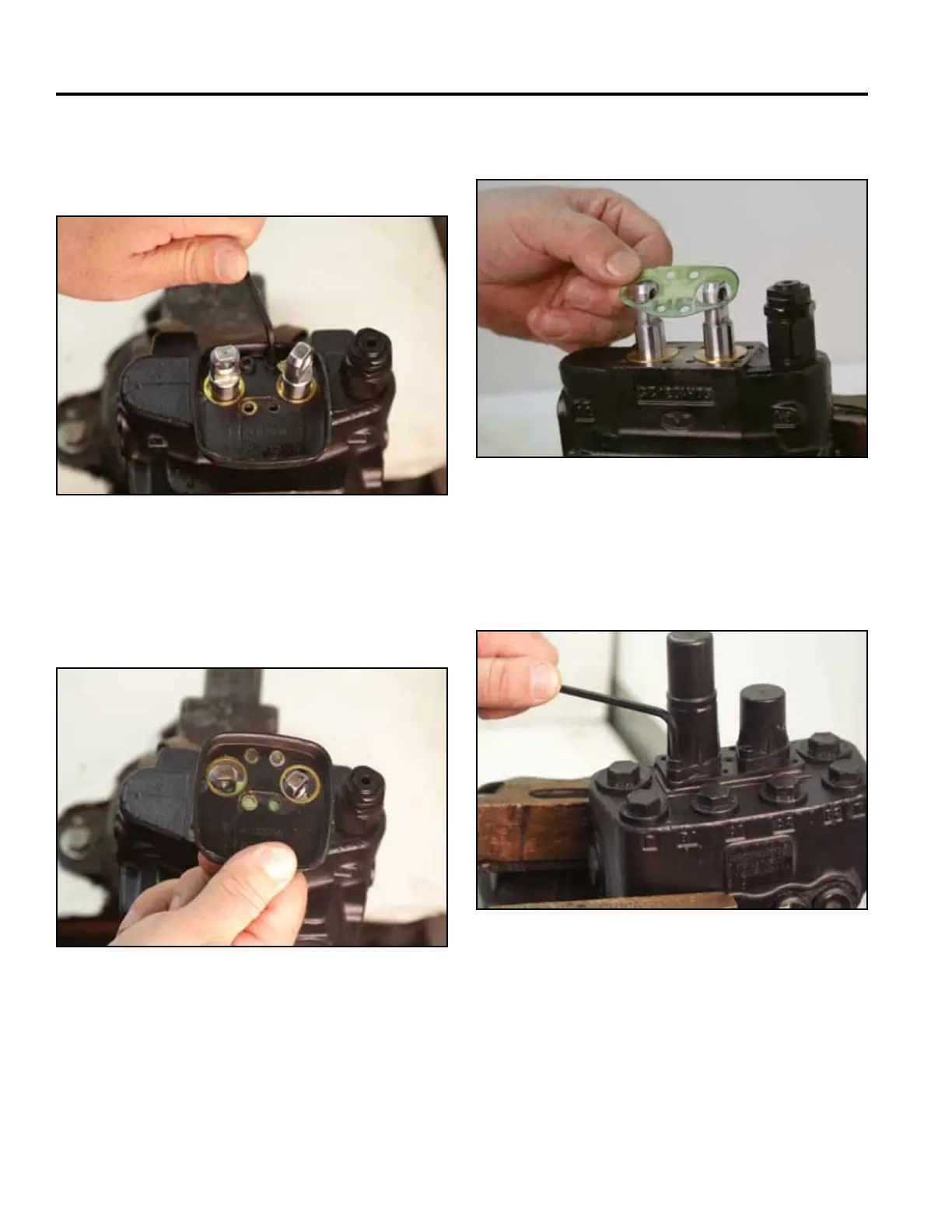

11. Using a 4mm Allen wrench, remove the 2 hex head
bolts that secure the joystick base plate to the valve
assembly (Fig. 1135).
13. Remove the gasket from the valve (Fig. 1137).
Fig 1135 PICT-2612
Fig 1137 PICT-2641a
14. Turn the valve assembly over. Using a 4mm Allen
wrench, remove the two hex head bolts that secure
each spring cap to the valve assembly (Fig. 1138).
12. Remove the joystick base plate from the valve
assembly (Fig. 1136).
Fig 1138 PICT-2614
Fig 1136 PICT-2613
