HYDRAULIC SYSTEM
6-81TX525 Service Manual Rev. 000

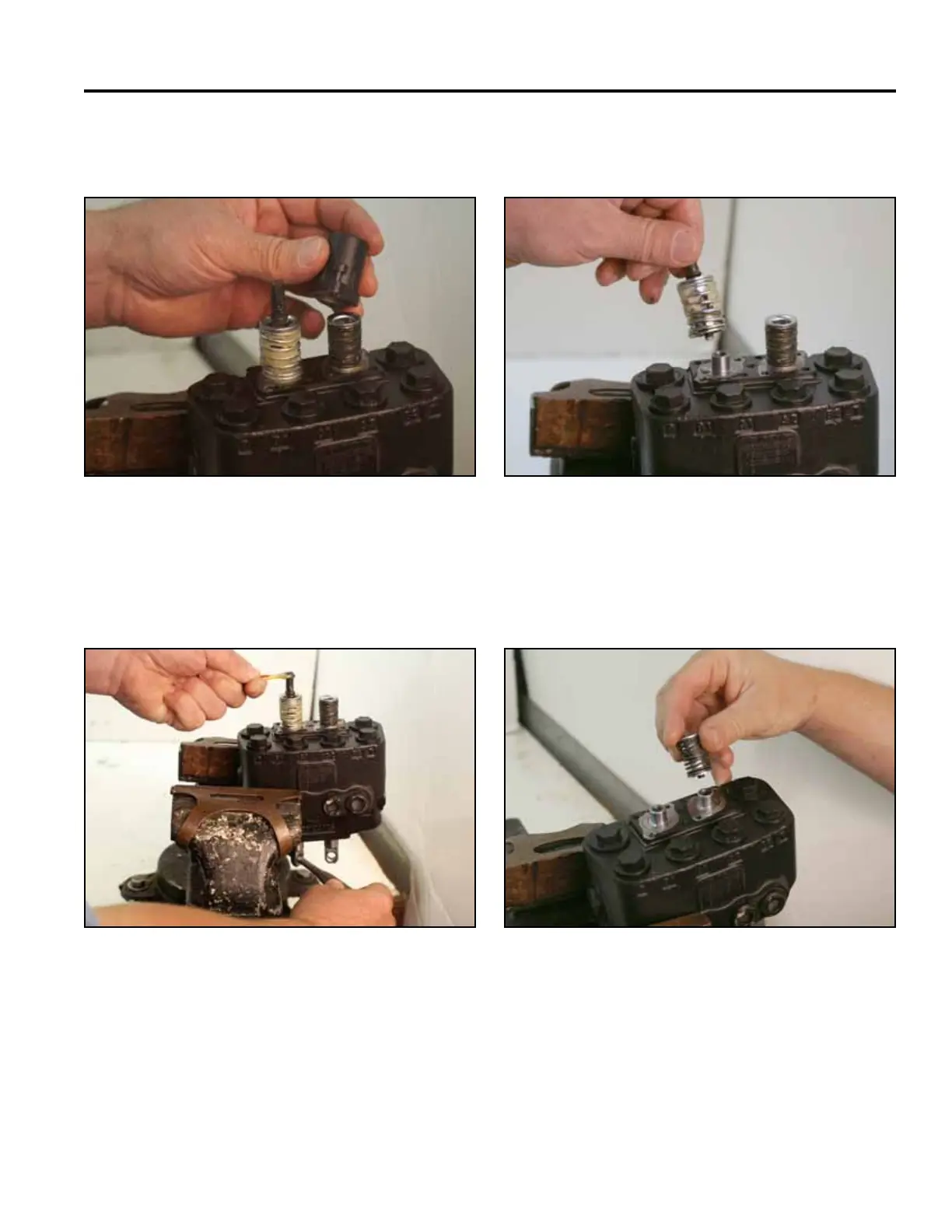

15. Remove both caps from the valve assembly (Fig.
1139).
17. Remove the detent spring from the valve assembly
(Fig. 1141).
Fig 1139 PICT-2616
Fig 1141 PICT-2618a
18. Using a drift punch to hold the top end of the spool,
use a 5mm wrench to remove the spring valve
assembly from the bottom of the spool (Fig. 1142).
16. Using a drift punch to hold the top end of the spool,
use a 6mm wrench to remove the detent spring
assembly from the bottom of the spool (Fig. 1140).
Fig 1142 PICT-2620a
Fig 1140 PICT-2617
