HYDRAULIC SYSTEM
6-84 Rev. 000 TX525 Service Manual

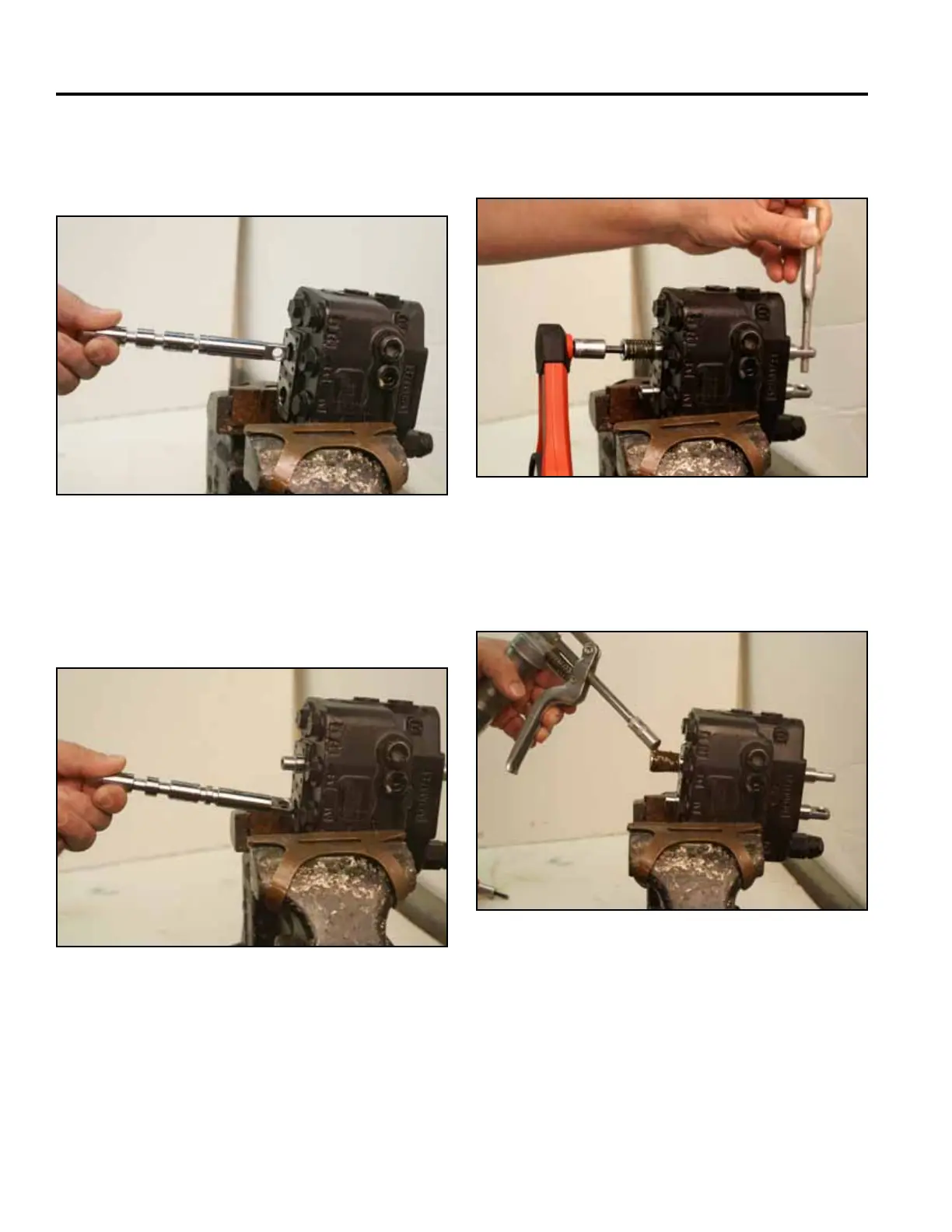

3. Lubricate the tilt spool. Install the spool in the port
furthest away from the relief; twist and push gently,
so you do not damage the o-ring (Fig. 1151).
5. Install the spring valve assembly with a 5mm hex
wrench and torque to 5 ft-lbs. (6.8 Nm) (Fig. 1153).
Fig 1151 PICT-2632a
Fig 1153 PICT-2635
6. Lubricate the spring with synthetic base grease
grade NLGI2 (Fig. 1154).
4. Lubricate and install the lift spool in the port closest
to the relief, twist and push gently, so you do not
damage the o-ring (Fig. 1152).
Fig 1154 PICT-2636
Fig 1152 PICT-2634a
