HYDRAULIC SYSTEM
6-85TX525 Service Manual Rev. 000

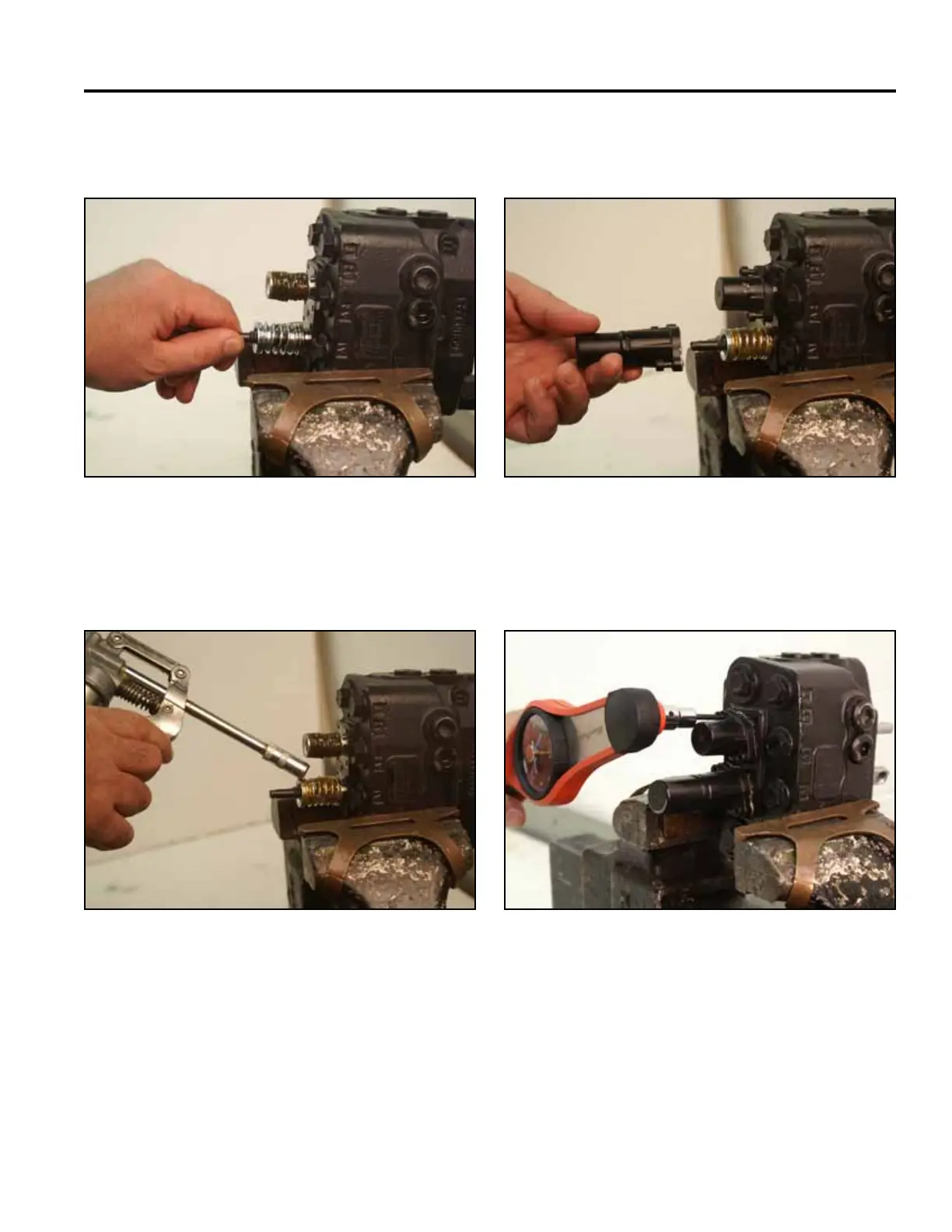

7. Install the detent spring assembly and torque to
5 ft-lbs. (6.8 Nm) (Fig. 1155).
9. Install the spool caps over the detent and spring
valve (Fig. 1157).
Fig 1155 PICT-2637
Fig 1157 PICT-2639
10. Tighten and torque the cap screws to 5 ft-lbs. (6.8
Nm) (Fig. 1158).
8. Lubricate the spring with synthetic base grease
grade NLGI2 (Fig. 1156).
Fig 1158 PICT-2640
Fig 1156 PICT-2638
