HYDRAULIC SYSTEM
6-86 Rev. 000 TX525 Service Manual

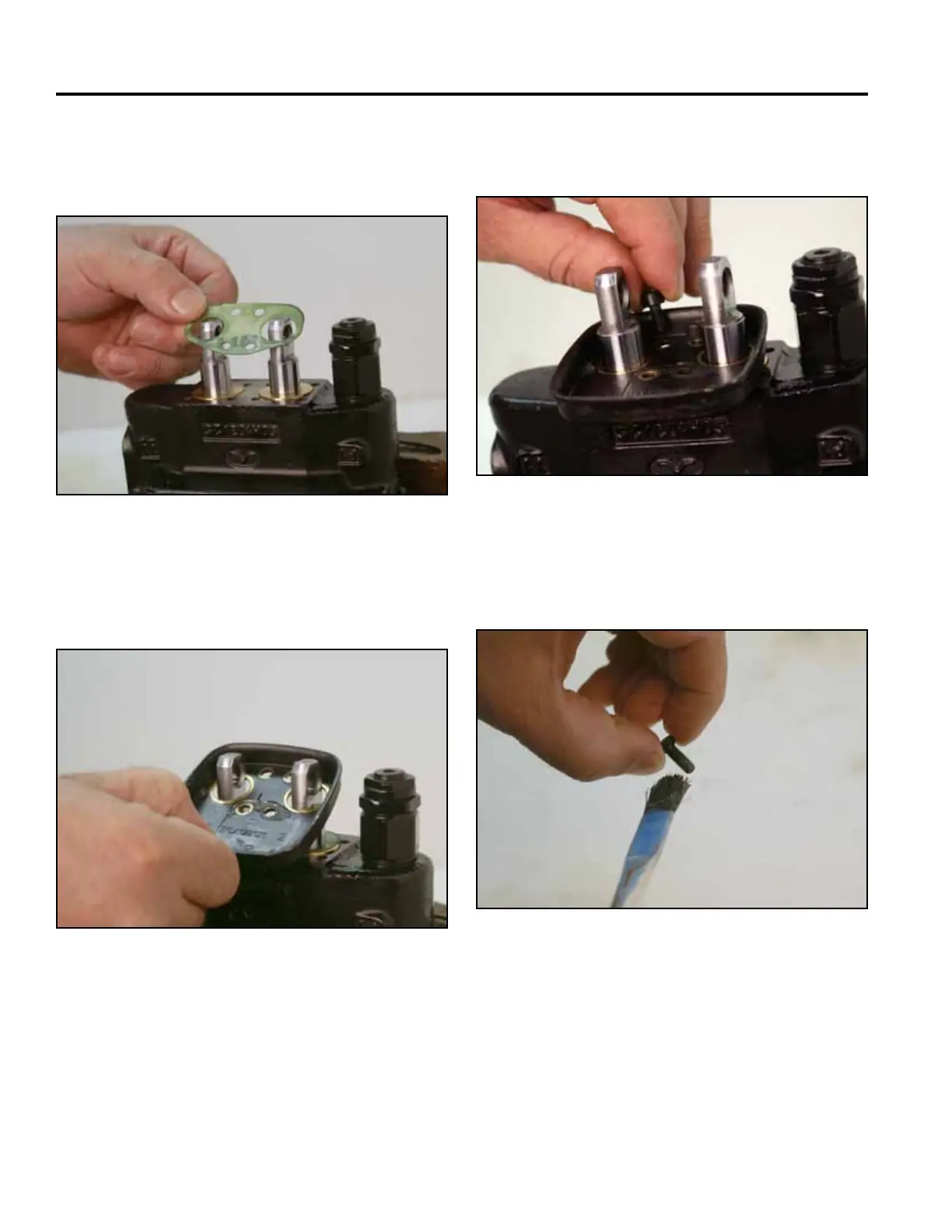

11. Rotate the valve in the bench vise. Install the gasket
over the spools and onto the valve assembly (Fig.
1159).
13. Secure the base plate with 2 cap screws and tighten
using a 4mm Allen wrench (Fig. 1161).
Fig 1159 PICT-2641a
Fig 1161 PICT-2644
14. Apply thread locking compound to the 2 screws that
will secure the pivot to the valve (Fig. 1162).
12. Position the joystick base plate over the spools and
onto the gasket (Fig. 1160).
Fig 1162 PICT-2599a
Fig 1160 PICT-2643a
