HYDRAULIC SYSTEM
6-97TX525 Service Manual Rev. 000

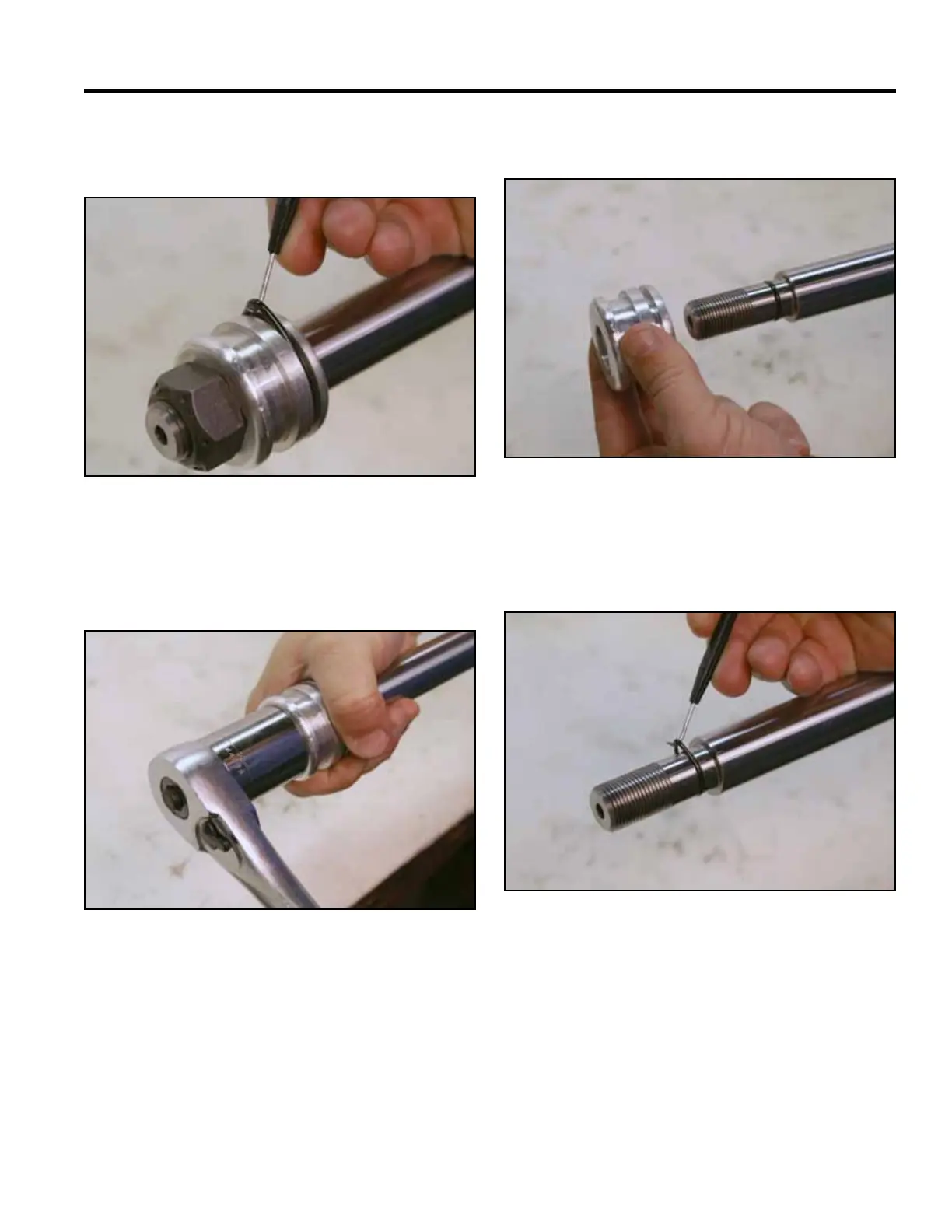

3. Remove the back-up piston seal from the ram
assembly (Fig. 1199).
5. Slide the piston off the end of the ram (Fig. 1201).
Fig 1199 PICT-3042a
Fig 1201 PICT-3045a
6. Remove the inner o-ring from the inside of the piston
(Fig. 1202).
4. Using a 1-1/8” socket, remove the nut from the ram
assembly (Fig. 1200).
Fig 1202 PICT-3046a
Fig 1200 PICT-3043a
