HYDRAULIC SYSTEM
6-98 Rev. 000 TX525 Service Manual

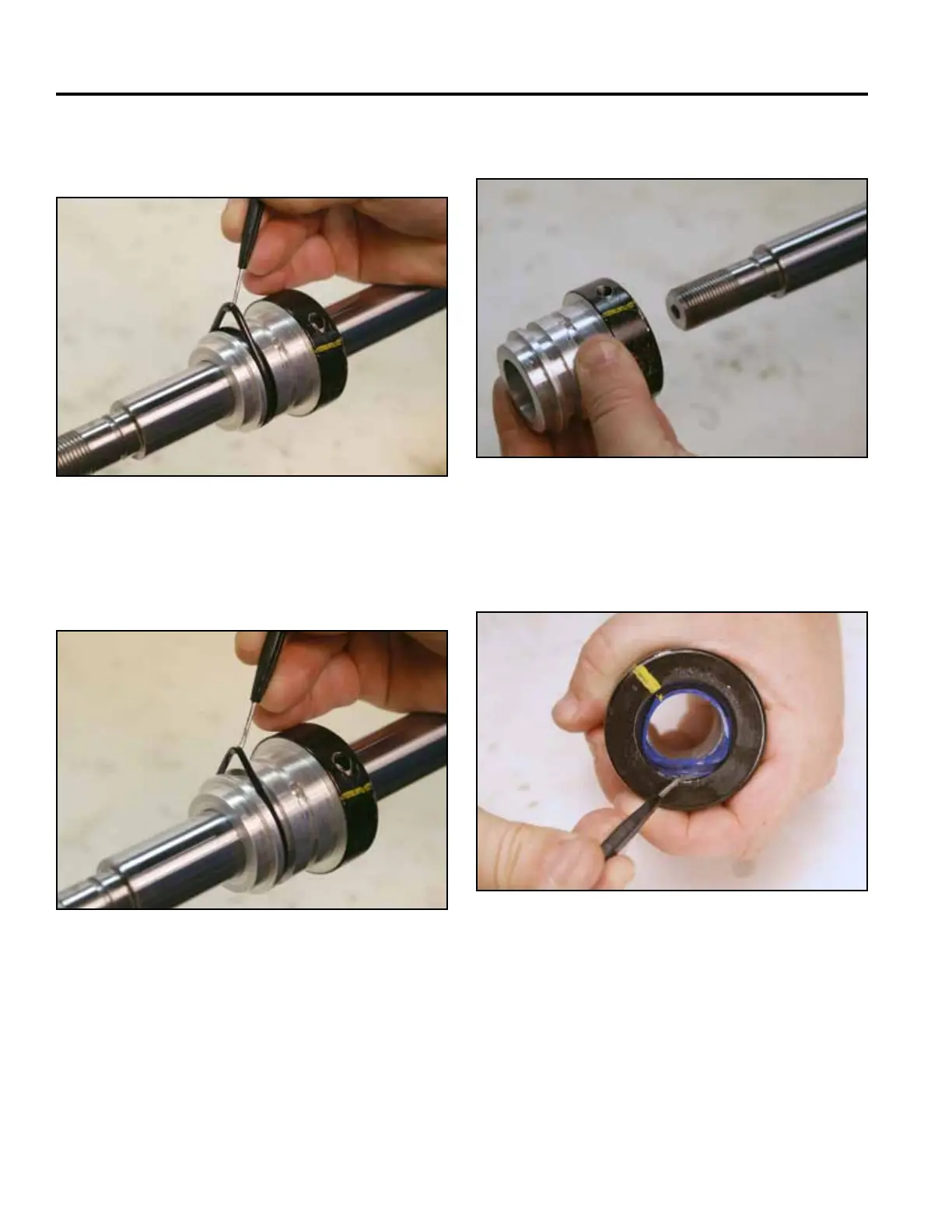

7. Remove the o-ring from the head on the ram
assembly (Fig. 1203).
9. Slide the head off the end of the ram (Fig. 1205).
Fig 1203 PICT-3047a
Fig 1205 PICT-3049a
10. Remove the wiper seal from inside the head (Fig.
1206).
8. Remove the at back-up ring from the head on the
ram assembly (Fig. 1204).
Fig 1206 PICT-3050a
Fig 1204 PICT-3048a
