HYDRAULIC SYSTEM
6-108 Rev. 000 TX525 Service Manual

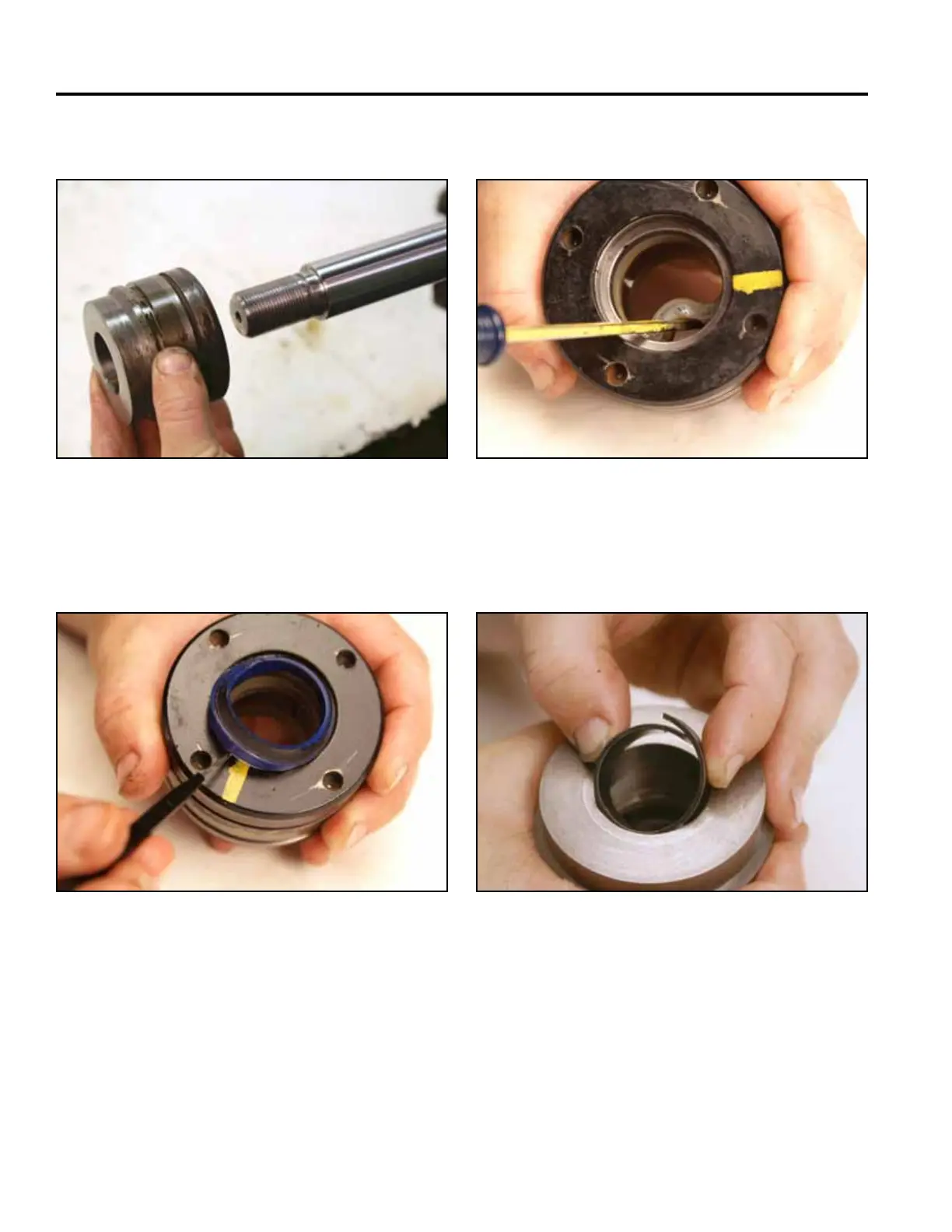

9. Slide the head off the end of the ram (Fig. 1239). 11. Remove the seal from inside the head (Fig. 1241).
Fig 1239 PICT-2969a
Fig 1241 PICT-2971
12. Turn the head over and remove the wear ring from
inside of head. (Fig. 1242).
10. Remove the wiper seal from inside the head (Fig.
1240).
Fig 1242 PICT-2972a
Fig 1240 PICT-2970
