13. Thoroughly rinse the inside of the tube with a clean
solvent. Rinse and clean all internal components of
foreign material with a lint-free rag.
14. Visually inspect for material defects and contami-
nation. All seals and o-rings must be replaced with
new parts.

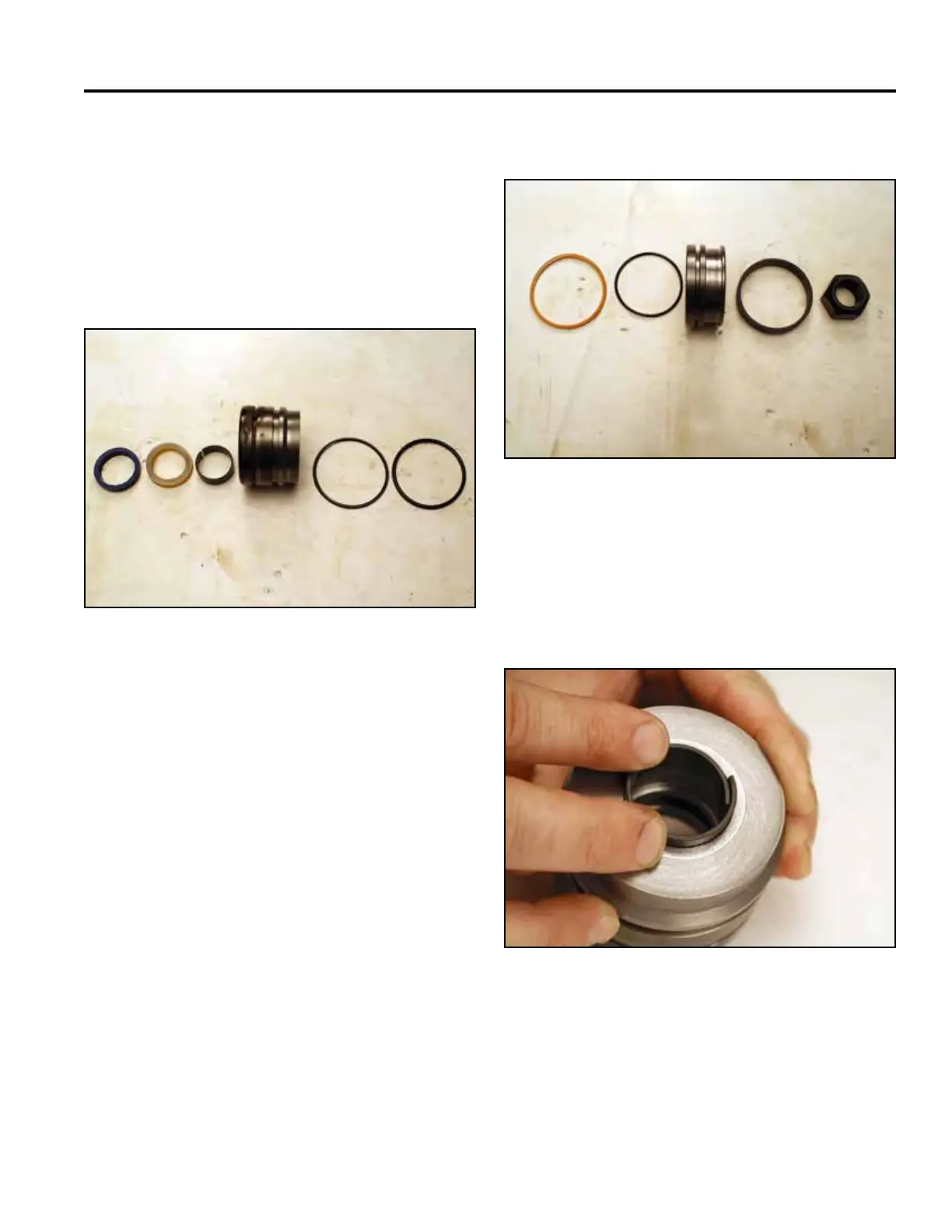

Head Assembly (Fig. 1243):
Piston Assembly (Fig. 1244):
Fig 1243 PICT-2973a
Fig 1244 PICT-2974a
15. Lubricate the head and all seals with 10W-30 oil
prior to installation.
16. From the bottom of the head install the wear ring
(Fig. 1245).
Fig 1245 PICT-2975a
A. Wiper Seal D. Head
B. Seal E. Backup Ring
C. Wear Ring F. O-Ring Seal
A B C
D
E F
