HYDRAULIC SYSTEM
6-111TX525 Service Manual Rev. 000

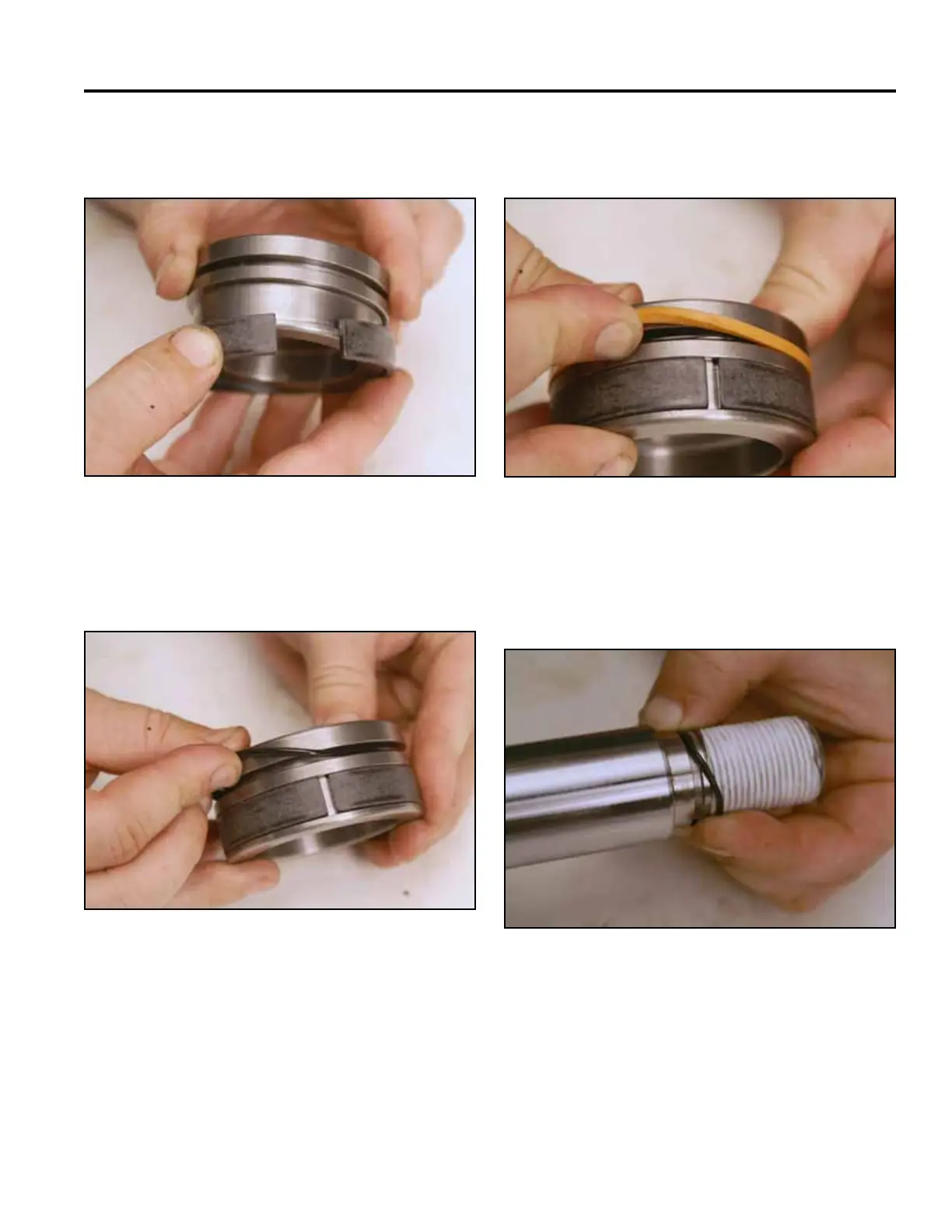

21. Install the wear ring into the widest groove on the
piston (Fig. 1250).
23. Install the seal ring into the narrowest groove on the
piston covering the back up ring. (Fig. 1252).
Fig 1250 PICT-2980a
Fig 1252 PICT-2982a
24. Wrap a protector over the threads of the ram. Install
the o-ring onto the ram. Remove the o-ring protector
from the threads (Fig. 1253).
22. Install the backup ring into the narrowest groove on
the piston (Fig. 1251).
Fig 1253 PICT-2983a
Fig 1251 PICT-2981a
