DRIVE SYSTEM
7-10 Rev. 000 TX525 Service Manual
7. Install the rear access cover (Fig. 1296).

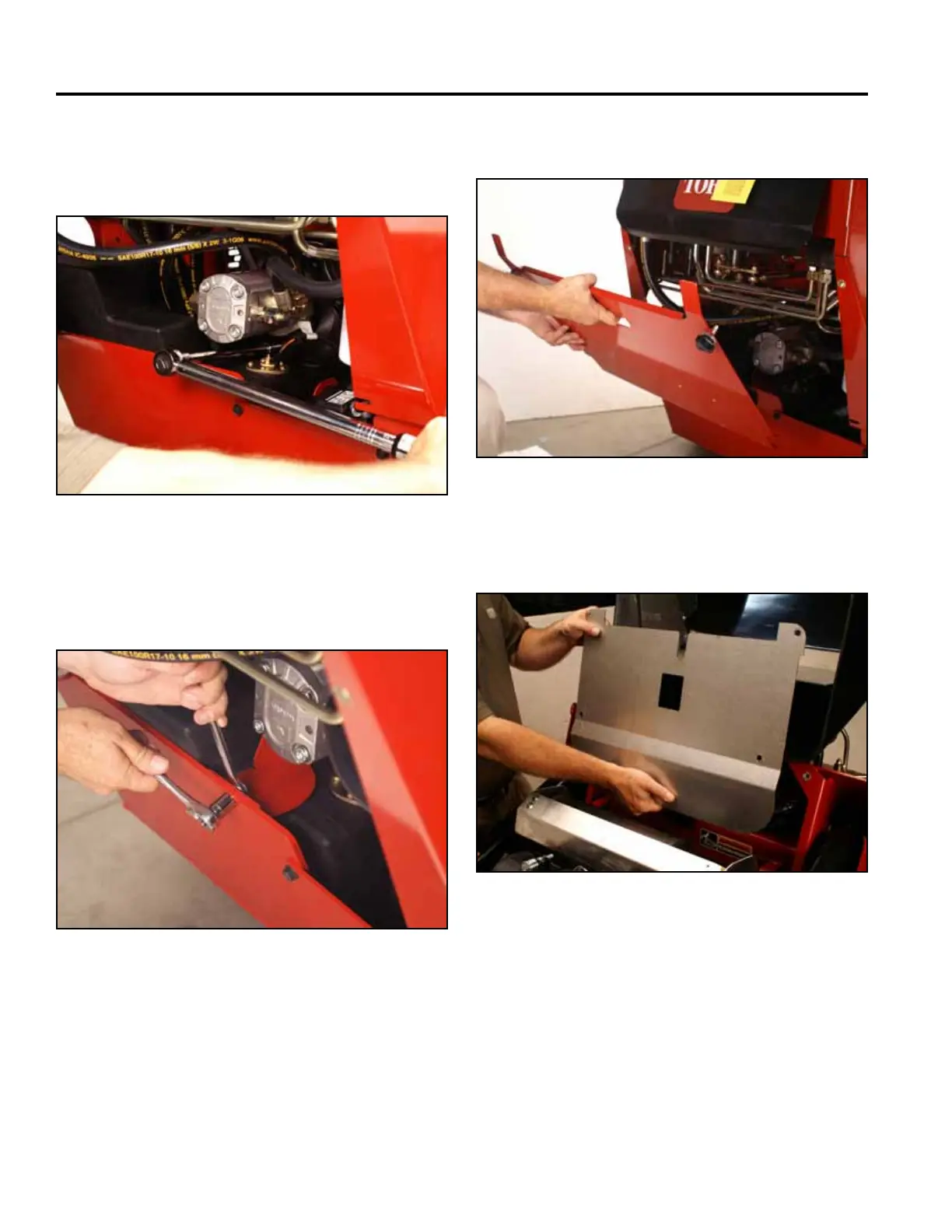

Fig 1296 Belt 006
8. Position the heat shield (Fig. 1297).
Fig 1297 Belt 005
5. Using a 5/8” socket, install and torque the 2 hydrau-
lic pump mount plate bolts to 50 ft-lbs. (67.8 Nm)
(Fig. 1294).
Fig 1294 Belt 018
6. Using a 1/2” wrench and socket, install the gas tank
hold down bracket (Fig. 1295).
Fig 1295 Belt 009
