MAINTENANCE
3-16 Rev. 000 TX525 Service Manual
11. Slidegrillontotheframesothegrillbasesitsunder
theloaderstopsandthetopofthegrillsitsontop
oftheradiator.Leavethegrillinaslightlyforward
position.Theoverowtankmountingholesshould
bejustbeyondtherighthandbossontopofthe
radiatorassembly.Thiswillallowtheoverowbottle
assemblytobeinstalled(Fig.0041).
13. Install2boltsandnutssecuringtheoverowbottle
assemblytothegrillassembly(Fig.0043).

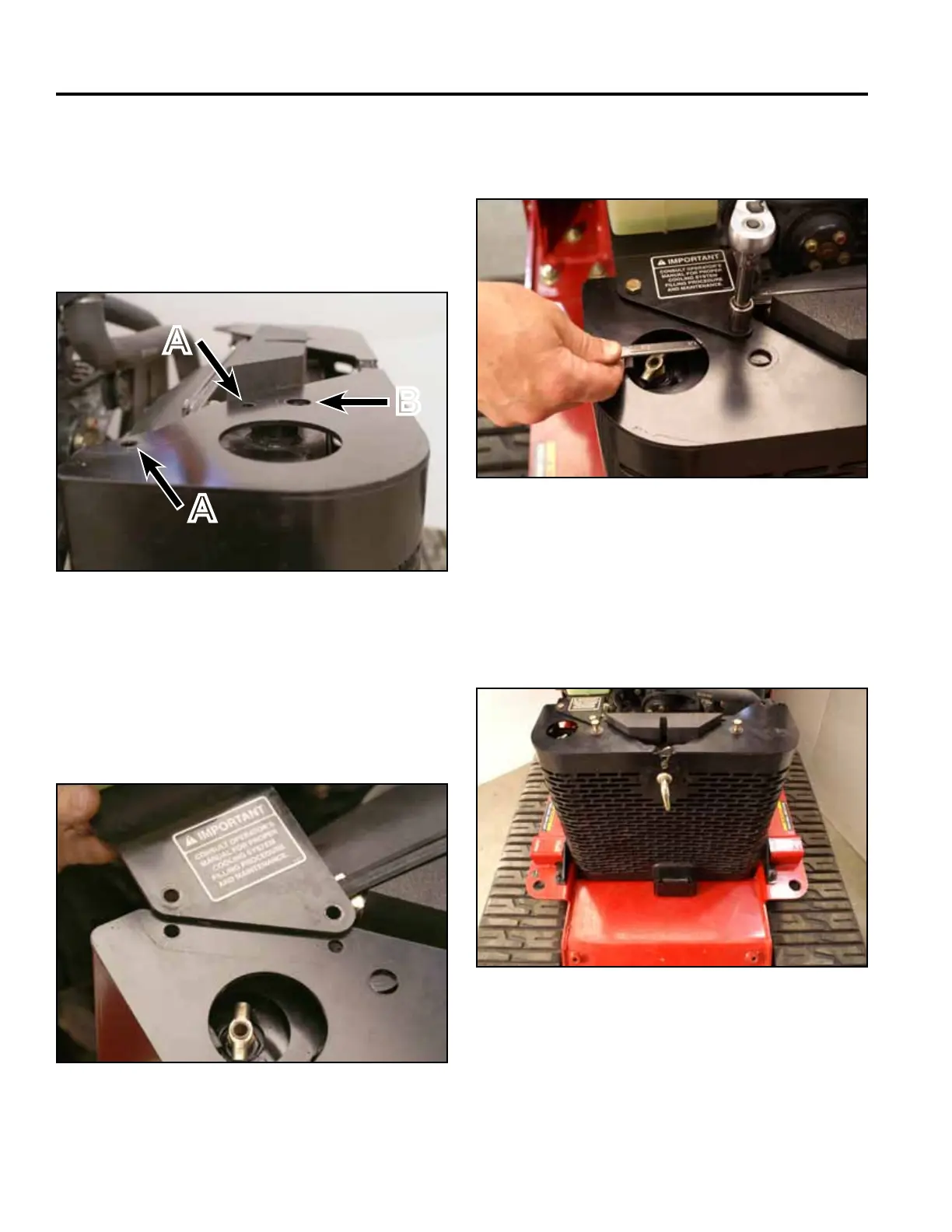

Fig 0041 PICT-5141a
Fig 0043 PICT-5145
14. Slidethegrillassemblybackaligningthemounting
holeswiththeholesintheframe.Looselyinstall4
boltssecuringthegrillassemblytotheframeandthe
2boltsandwasherssecuringthegrilltotheradiator
(Fig.0044).
12. Positiontheoverowtankbracketontothegrill
assembly(Fig.0042).
Fig 0044 PICT-5146
Fig 0042 PICT-5143a
A. Overowtankmountingholes
B. Righthandboss
A
A
B
