DRIVE SYSTEM
7-27TX525 Service Manual Rev. 000

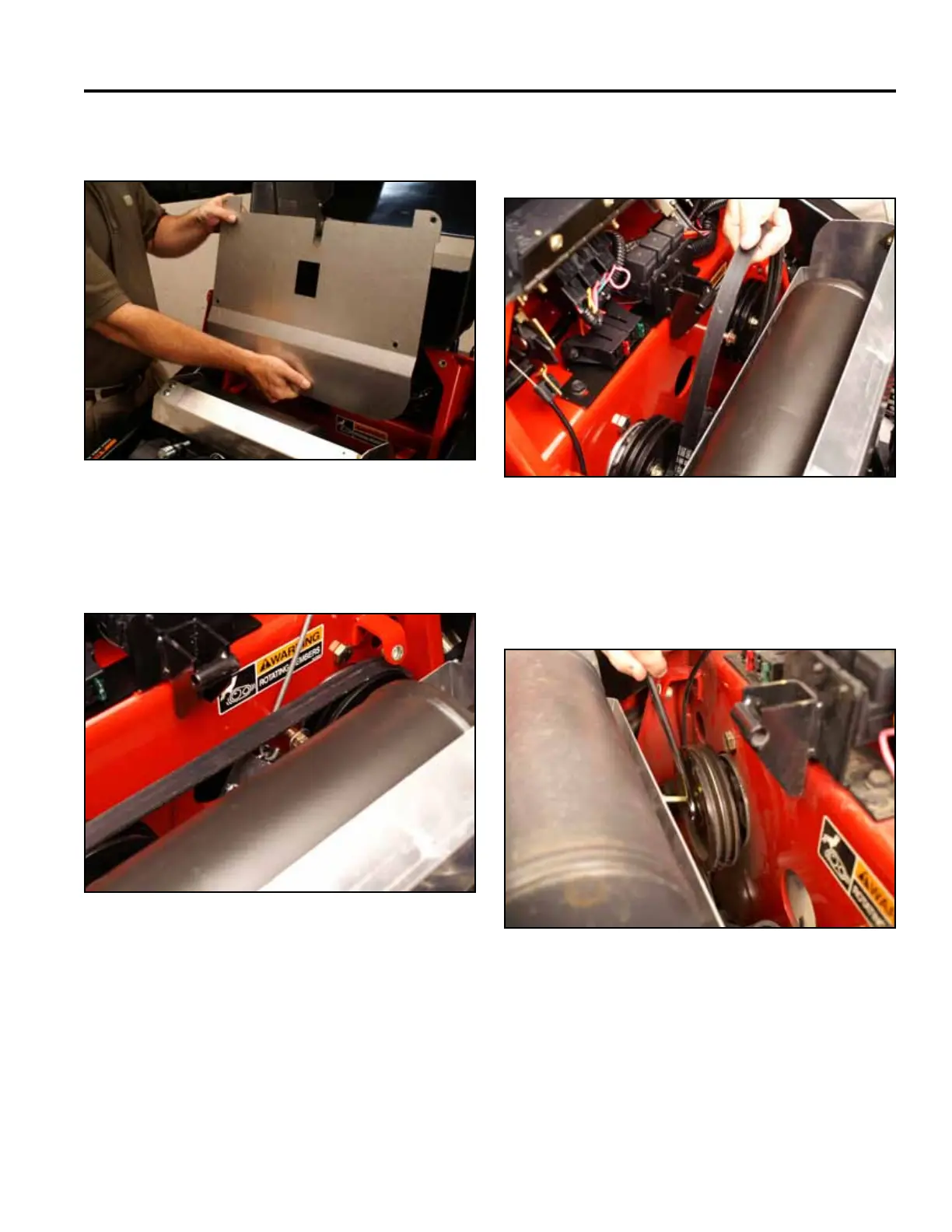

32. Remove the heat shield (Fig. 1360).
Fig 1360 Belt 005
33. Using a spring tool, remove the idler spring from its
post (Fig. 1361).
Fig 1361 Belt 007
34. Remove the belt from the right and left hydraulic
traction pump pulleys (Fig. 1362).
Fig 1362 Belt 008
35. Secure the pulley. Using a 5/8” socket, remove the
center nut and washer retaining the pulley to the
right hand hydrostatic pump shaft (Fig. 1363).
Fig 1363 PICT-4647
