DRIVE SYSTEM
7-45TX525 Service Manual Rev. 000

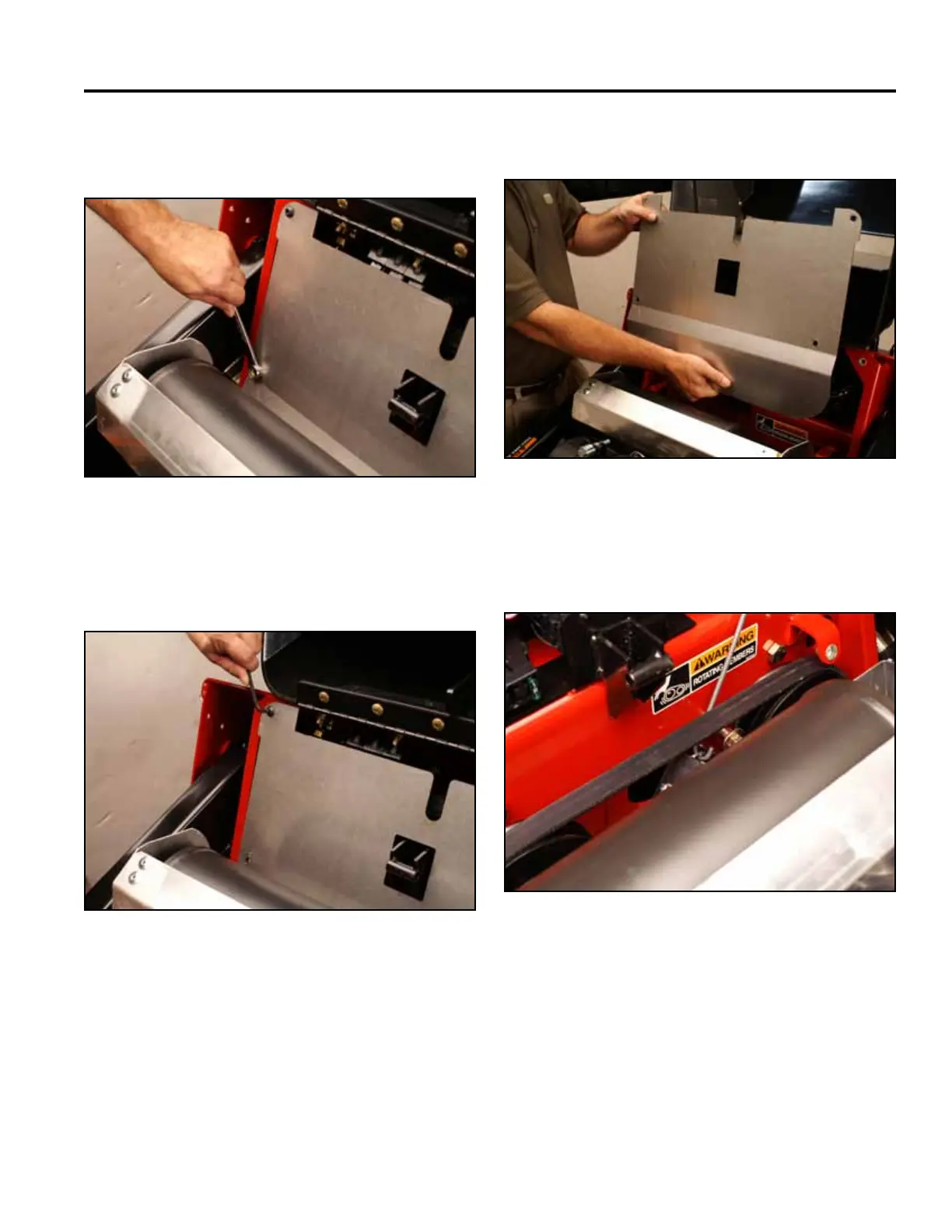

21. Remove the heat shield (Fig. 1433).
Fig 1433 Belt 005
22. Using a spring tool, remove the idler spring from its
post (Fig. 1434).
Fig 1434 Belt 007
19. Using a 1/2” wrench, remove the 2 lower heat shield
screws (Fig. 1431).
Fig 1431 Belt 002
20. Using a 3/16” Allen wrench, remove the 2 upper heat
shield screws (Fig. 1432).
Fig 1432 Belt 004
