DRIVE SYSTEM
7-44 Rev. 000 TX525 Service Manual

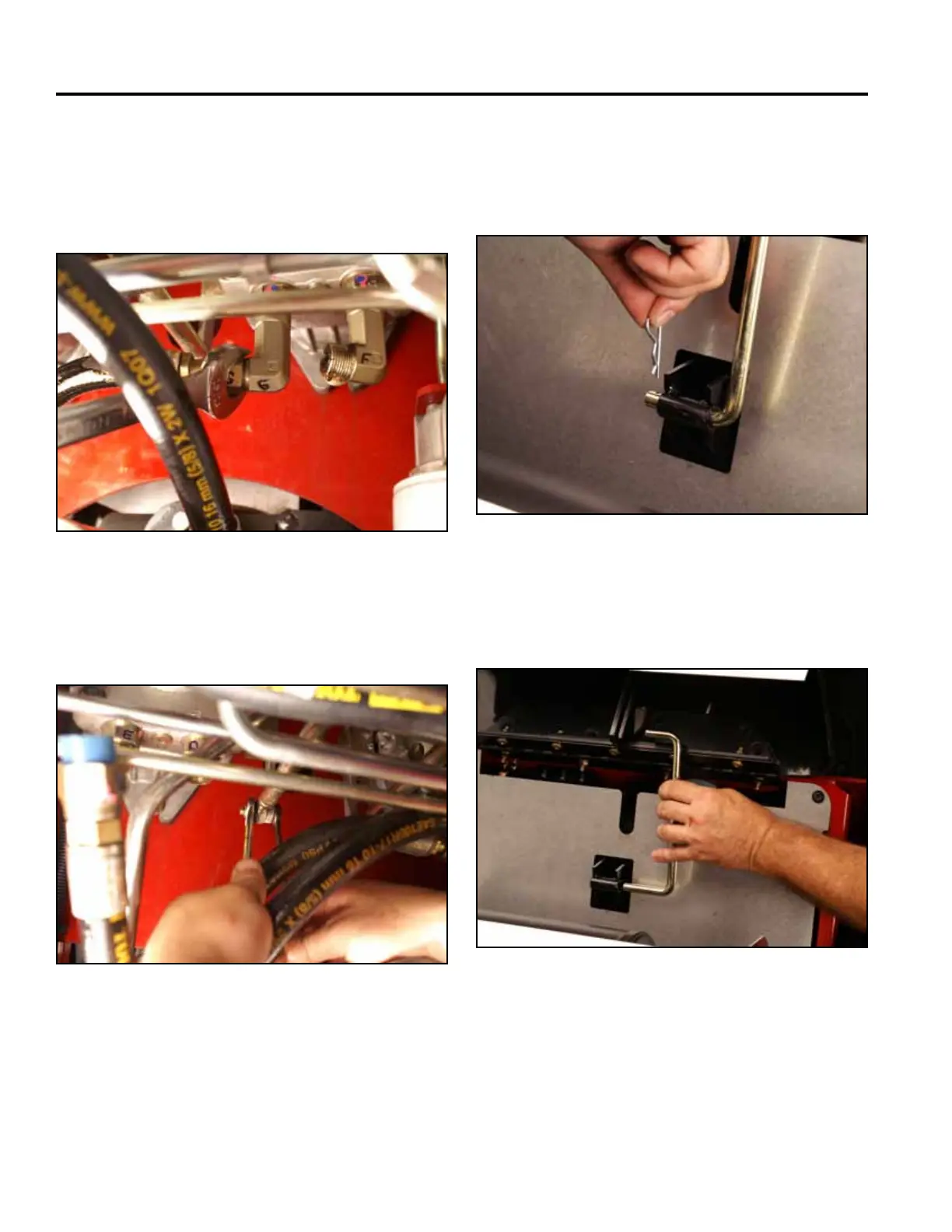

G. Hydraulic hose running to the upper port on the
left hand wheel motor (Fig. 1427).
Note: Capallhydrauliclinesandttingstoprevent
debris from entering system.
Fig 1427 PICT-4623
15. Remove the nut and bolt securing the drive linkage
to the left hand hydrostatic pump (Fig. 1428).
Fig 1428 PICT-4618
16. Raise the hood.
17. Remove the hairpin cotter from the hood prop rod
(Fig. 1429).
Fig 1429 Belt 001
18. Support the hood and remove the prop rod (Fig.
1430).
Fig 1430 Belt 003
