DRIVE SYSTEM
7-43TX525 Service Manual Rev. 000

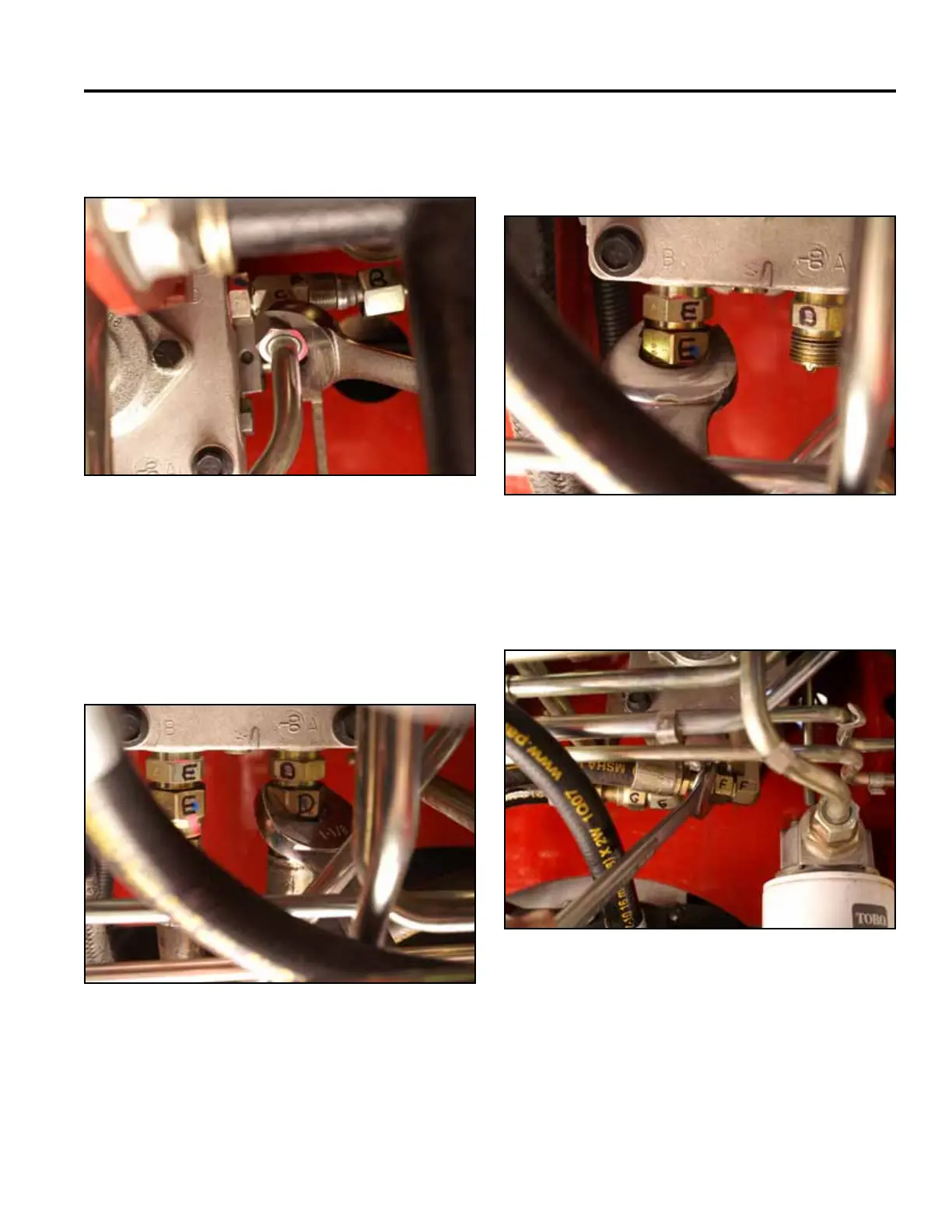

C. Case drain line returning to the hydraulic oil tank
(Fig. 1423).
Fig 1423 PICT-4614
14. Using a 1-1/8” wrench, disconnect the remaining
left hand hydrostatic pump lines (just marked) as
follows:
D. Hydraulic hose running from the “D” port on
thepumptotheupperttingontherightwheel
motor (Fig. 1424).
Fig 1424 PICT-4615
E. Hydraulic hose running from the “E” port on the
hydrostaticpumptothelowerttingontheright
wheel motor (Fig. 1425).
Fig 1425 PICT-4616
F. Hydraulic hose running to the lower port on the
left hand wheel motor (Fig. 1426).
Fig 1426 PICT-4621
