DRIVE SYSTEM
7-49TX525 Service Manual Rev. 000

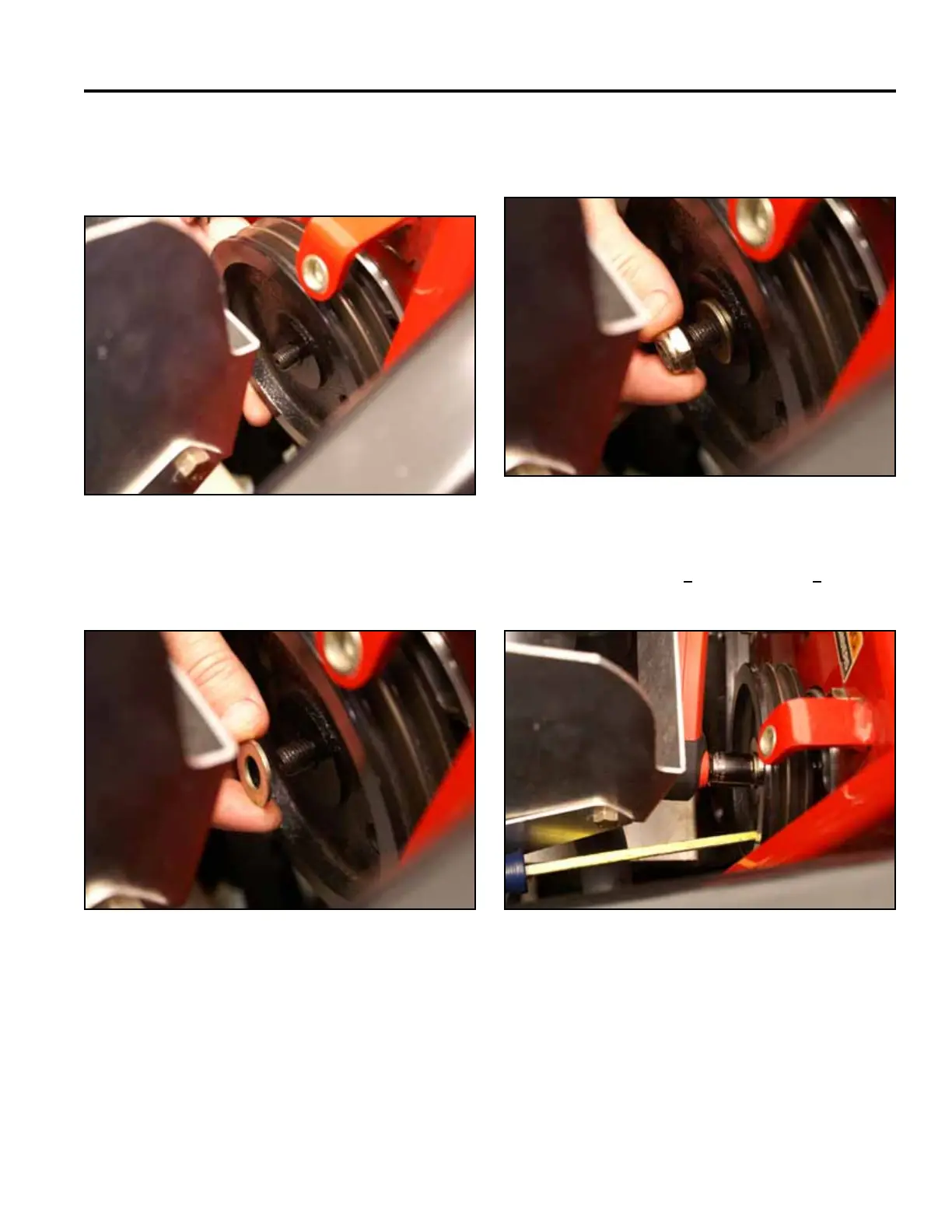

5. Slide the left hand pulley onto the hydrostatic pump
shaftwiththethickerangesidefacingtowardthe
pump (Fig. 1447).
Fig 1447 PICT-4632
6. Slide a washer onto the pump shaft (Fig. 1448).
Fig 1448 PICT-4633
7. Install a nut to secure the pulley to the left hand
hydrostatic pump shaft (Fig. 1449).
Fig 1449 PICT-4634
8. Torque the nut to 260 + 40 in-lbs. (29.38 + 4.5 Nm)
(Fig. 1450).
Fig 1450 PICT-4635
