DRIVE SYSTEM
7-57TX525 Service Manual Rev. 000

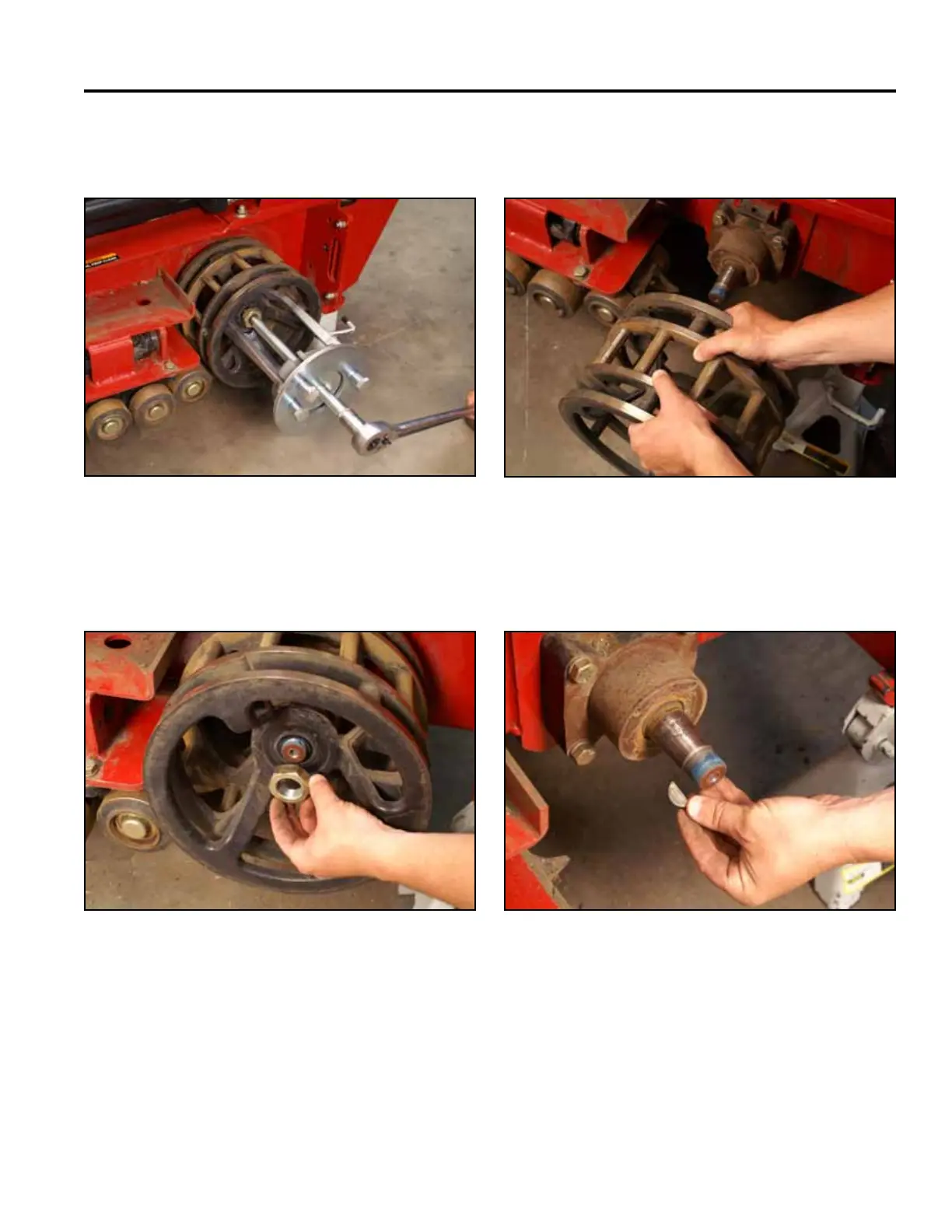

7. Remove the drive sprocket from the wheel motor
shaft (Fig. 1479).
Fig 1479 PICT-4452
8. Remove the key from the wheel motor shaft keyway
(Fig. 1480).
Fig 1480 PICT-4457
5. Using a wheel puller, break the drive sprocket free
from the wheel motor shaft (Fig. 1477).
Fig 1477 PICT-4450
6. Remove the patch lock nut from the wheel motor
shaft (Fig. 1478).
Fig 1478 PICT-4451
