DRIVE SYSTEM
7-58 Rev. 000 TX525 Service Manual

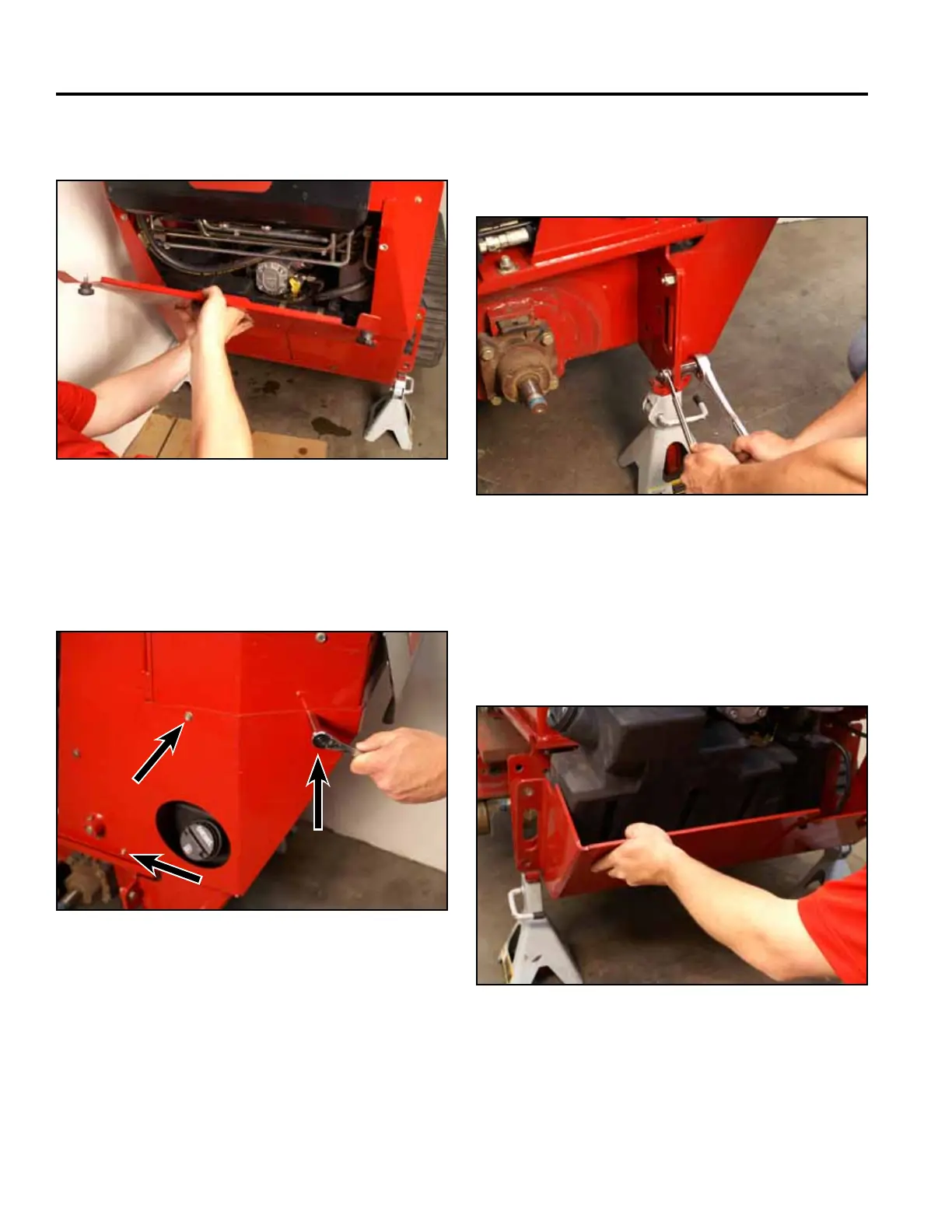

9. Remove the rear access panel (Fig. 1481).
Fig 1481 PICT-4505
10. Using a 3/8” socket, remove the 6 screws that
secure the left and right rear cover support panel to
the tower assembly. Remove the panel (Fig. 1482).
Fig 1482 PICT-4454
11. Using 3/4” and 1/2” sockets, remove the 7 bolts and
nuts securing the rear frame cover to the frame and
fuel tank bracket (Fig. 1483).
Fig 1483 PICT-4456
12. Remove the rear frame cover (Fig. 1484).
Note: The rear of the machine may have to be lifted
to reposition the jack stands so that the rear
frame cover can be removed.
Fig 1484 PICT-4458
