DRIVE SYSTEM
7-66 Rev. 000 TX525 Service Manual

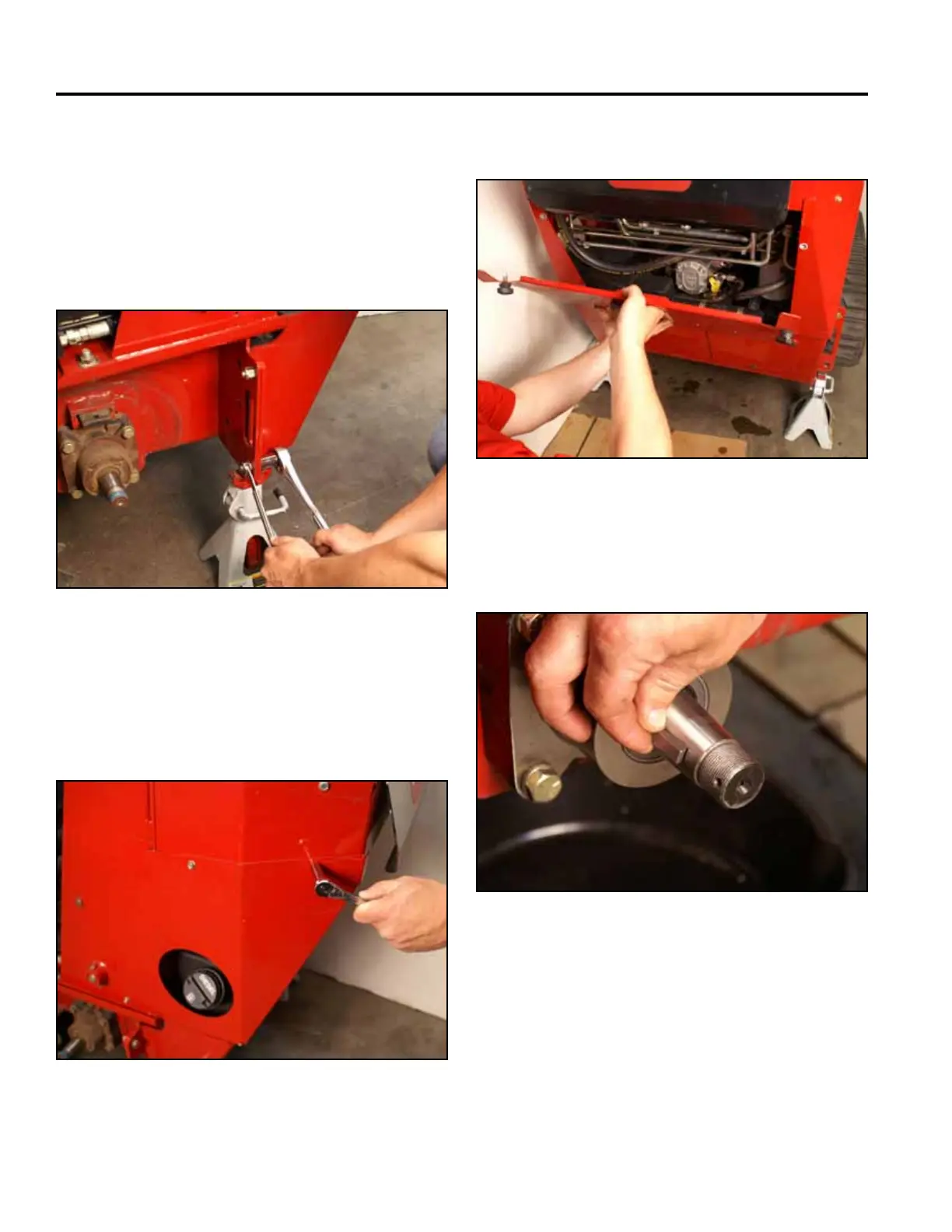

14. Position the rear frame cover to the rear end of the
frame. Using 3/4” and 1/2” sockets, install 7 bolts
and nuts to secure the rear frame cover to the frame
and fuel tank bracket (Fig. 1510).
Note: The rear of the machine may have to be lifted
to reposition the jack stands so that the rear
frame cover can be installed.
Fig 1510 PICT-4456
15. Position the left and right hand rear cover support
panels to the tower. Using a 3/8” socket, install 3
screws each to secure the left and right rear cover
support panels to the tower assembly. (Fig. 1511).
Fig 1511 PICT-4454
16. Install the rear access panel (Fig. 1512).
Fig 1512 PICT-4505
17. Insert the key into the wheel motor shaft keyway
(Fig. 1513).
Fig 1513 PICT-4480
