DRIVE SYSTEM
7-84 Rev. 000 TX525 Service Manual

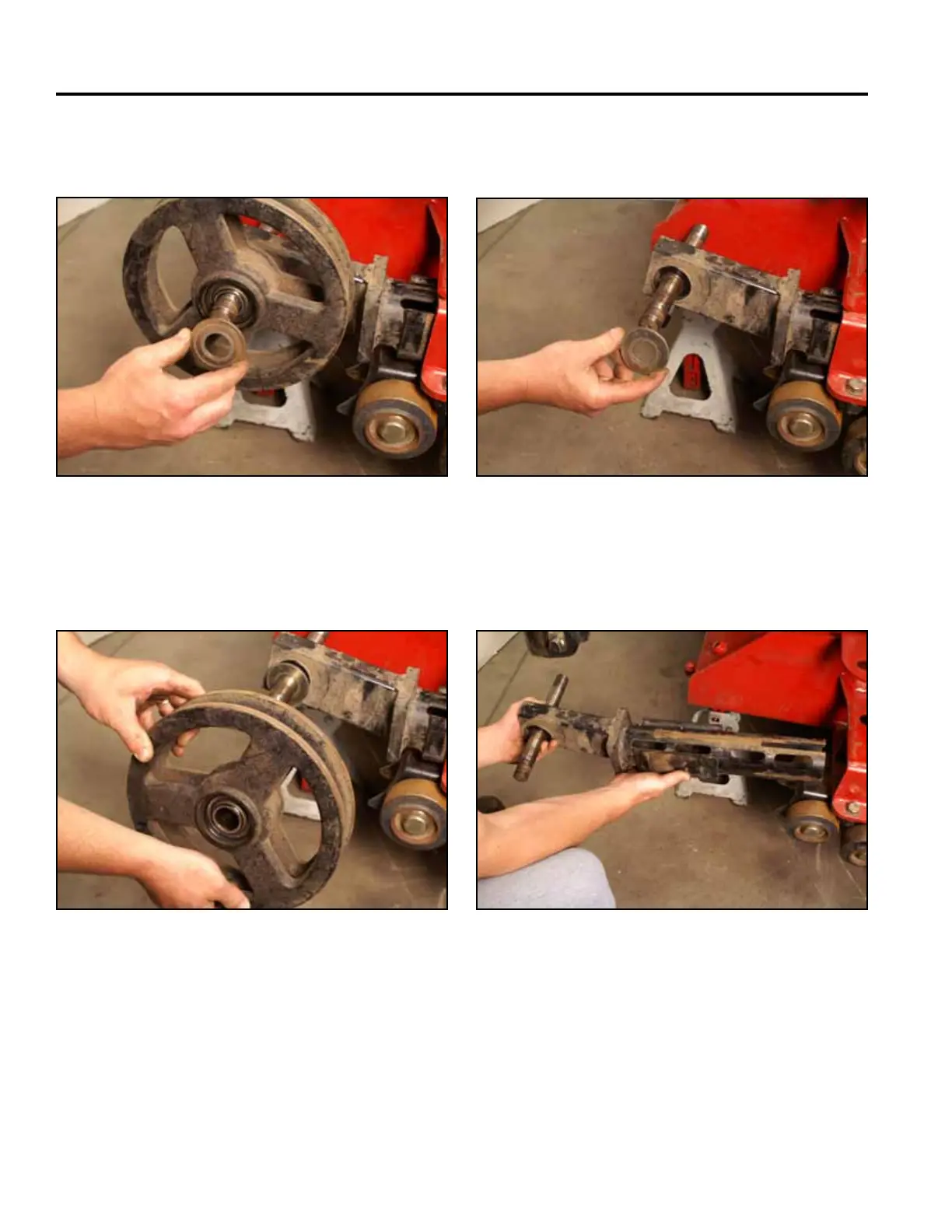

5. Remove the inner washer from the tensioner wheel
(Fig. 1576).
Fig 1576 PICT-4576
6. Slide the tensioner arm out of the mainframe (Fig.
1577).
Fig 1577 PICT-4577
3. Remove the outer washer from the tensioner wheel
(Fig. 1574).
Fig 1574 PICT-4574
4. Remove the tensioner wheel from the tensioner arm
shaft (Fig. 1575).
Fig 1575 PICT-4575
