DRIVE SYSTEM
7-89TX525 Service Manual Rev. 000

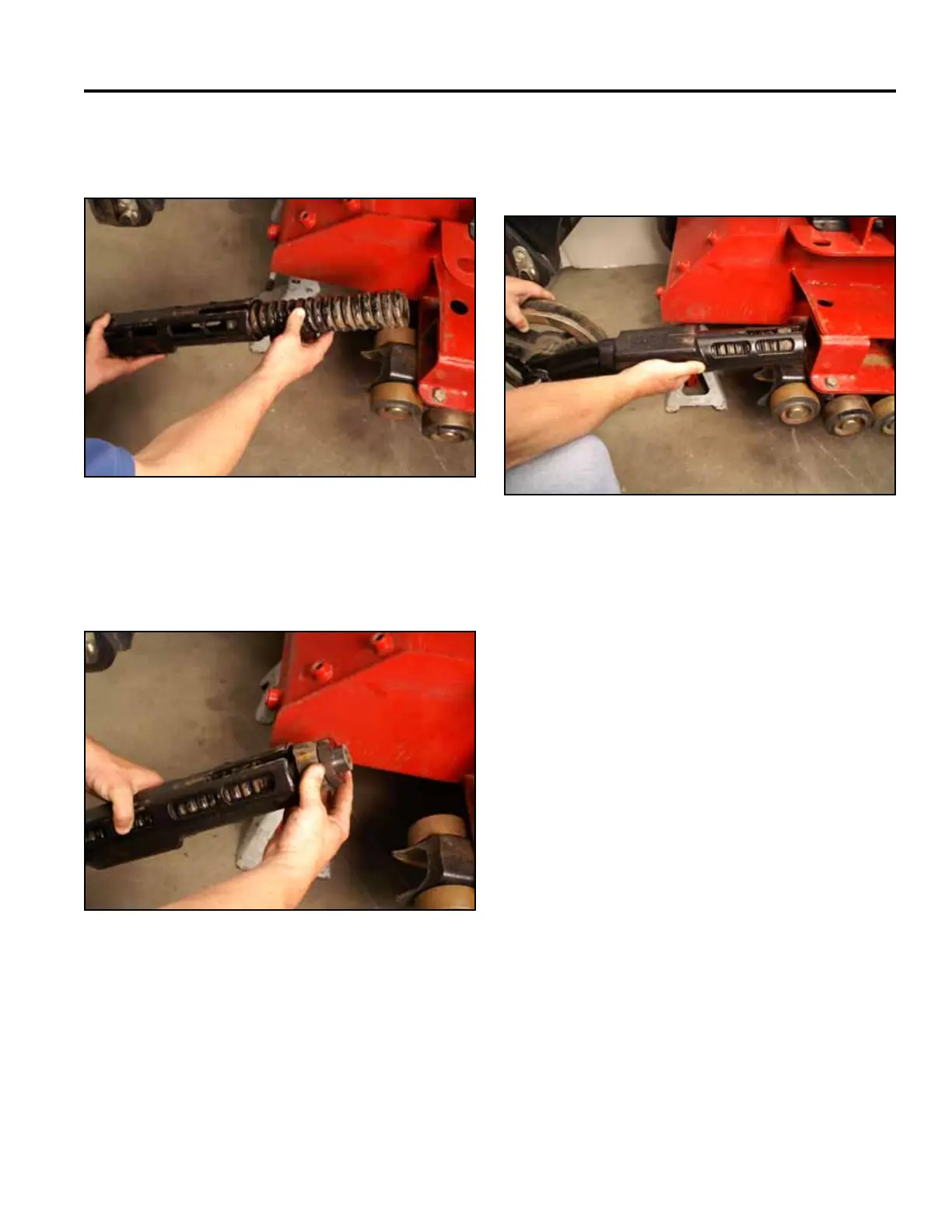

9. Slide the tensioner spring into the tensioner arm
(Fig. 1594).
Fig 1594 PICT-4585
10. Slide the tensioner bolt and nut into the tensioner
arm (Fig. 1595).
Fig 1595 PICT-4587
11. Rotate the tensioner arm so the top is facing up for
proper installation and slide it back into the main-
frame (Fig. 1596).
Fig 1596 PICT-4590
12. Install the track. Refer to “Wide Track Installation” on
page 7-70.
13. Lower the loader arm.
14. Lower the machine to the ground.
