BRAKES
8-6 Rev. 000 TX525 Service Manual

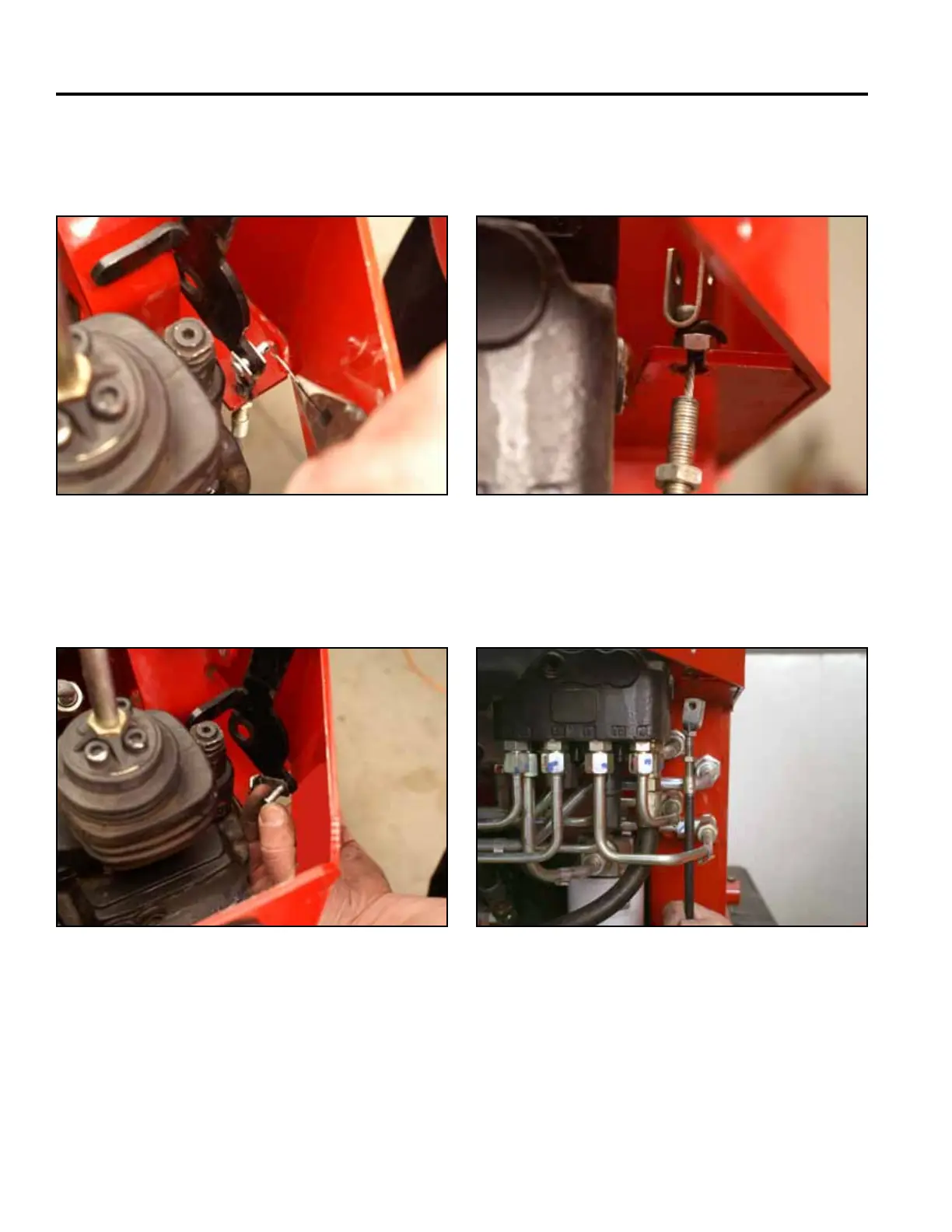

23. Remove the cotter pin from the clevis pin that
secures the brake cable to the brake handle (Fig.
1654).
Fig 1654 PICT-4286
24. Support the brake handle and remove the clevis pin.
Remove the brake handle (Fig. 1655).
26. Pull the brake cable down through the hydraulic lines
(Fig. 1657).
Fig 1655 PICT-4288a
Fig 1657 PICT-4292a
25. Pull down on the brake cable and slide the threaded
portion of the brake cable assembly out of the slot
(Fig. 1656).
Fig 1656 PICT-4289
