BRAKES
8-17TX525 Service Manual Rev. 000

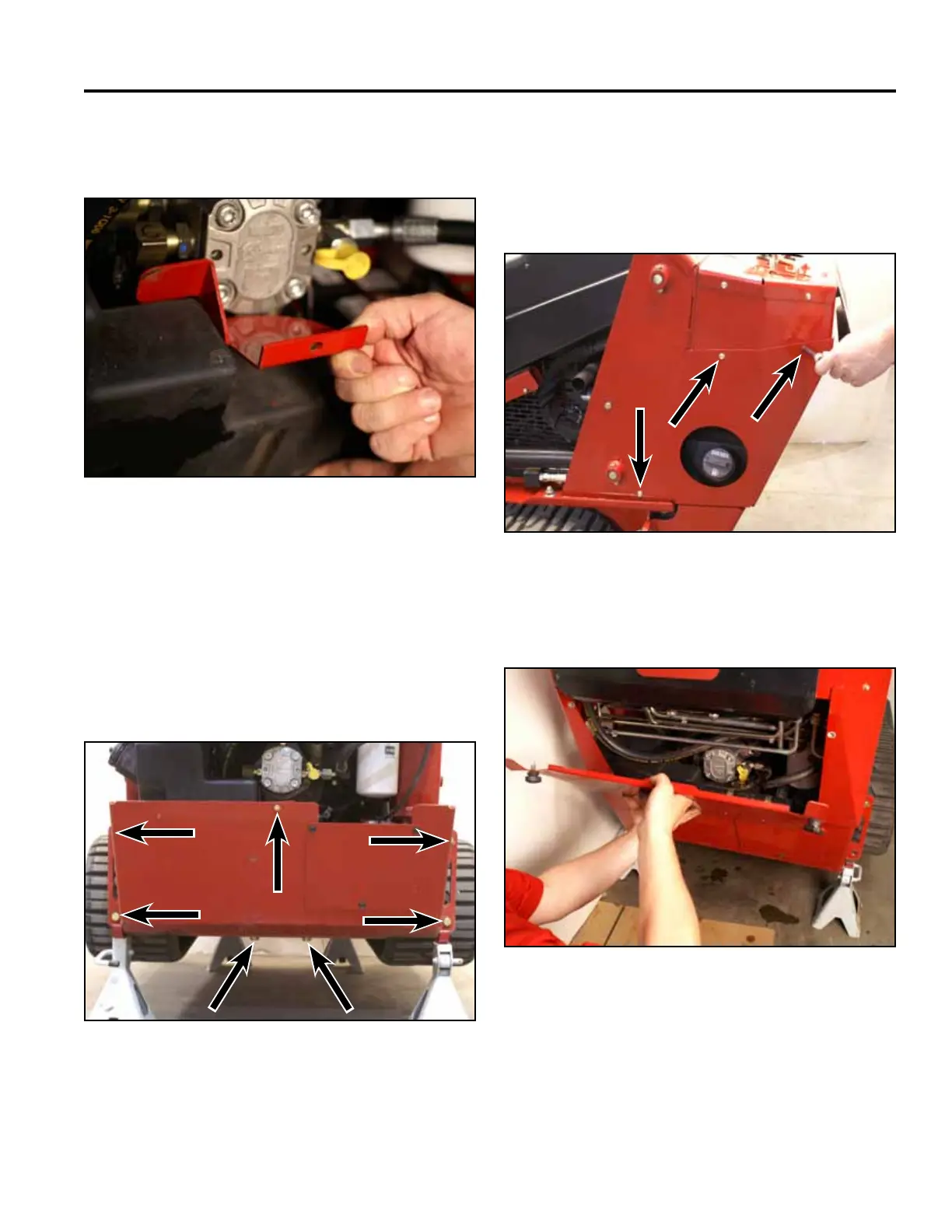

23. Position the fuel tank bracket onto the fuel tank (Fig.
1696).
Fig 1696 PICT-5626
24. Position the rear frame cover to the rear end of the
frame. Using 3/4” and 1/2” sockets, install 7 bolts
and nuts to secure the rear frame cover to the frame
and fuel tank bracket (Fig. 1697).
Note: The rear of the machine may have to be lifted
to reposition the jack stands so that the rear
frame cover can be installed.
Fig 1697 PICT-4259
25. Position the left hand rear cover support panel to
the tower. Using a 3/8” socket, install 3 screws to
secure the left rear cover support panel to the tower
assembly. Repeat to install right hand rear cover
support panel (Fig. 1698).
Fig 1698 PICT-4256
26. Install the rear access panel (Fig. 1699).
Fig 1699 PICT-4505
27. Lower the machine.
