BRAKES
8-16 Rev. 000 TX525 Service Manual

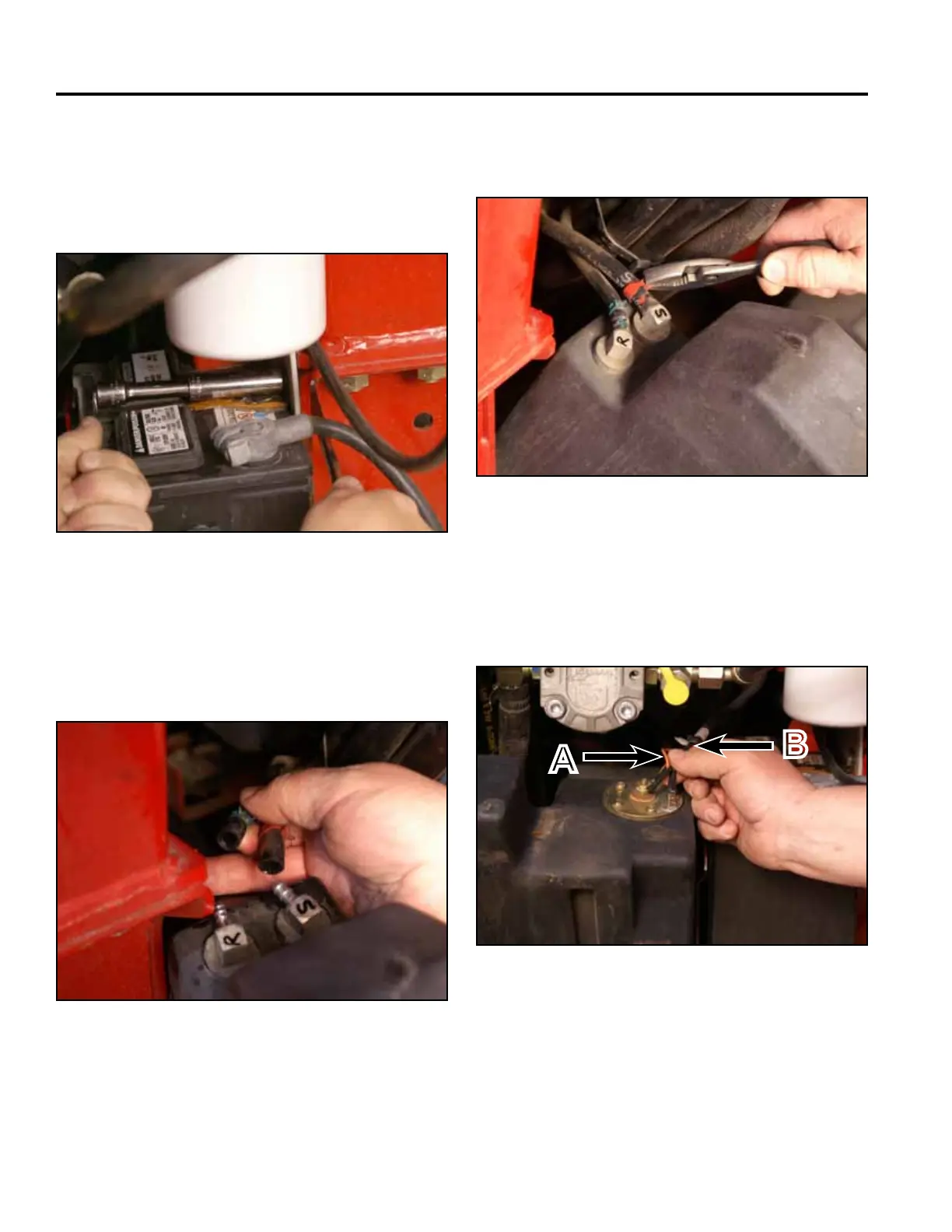

19. Position the battery clamp into the slot on the battery
mount and line up the mounting hole with the hole in
the frame. Using a 1/2” socket and wrench, install a
bolt, washer and nut to secure the battery clamp to
the frame (Fig. 1692).
Fig 1692 PICT-4310a
20. Slidethe2fuellinesontothefueltankttings.Note
the location markings (Fig. 1693).
S - Fuel suction line
R - Fuel return line
Fig 1693 PICT-4265
21. Position the 2 fuel hose clamps to secure the fuel
linestothefueltankttings(Fig.1694).
A. Center terminal (orange wire)
B. Outside terminal (black wire)
Fig 1694 PICT-4264
22. Position the fuel tank into the rear end of the frame.
Connect the two wires (black and orange) to the fuel
sending unit located on the top of the fuel tank (Fig.
1695).
Fig 1695 PICT-4262
A
B
