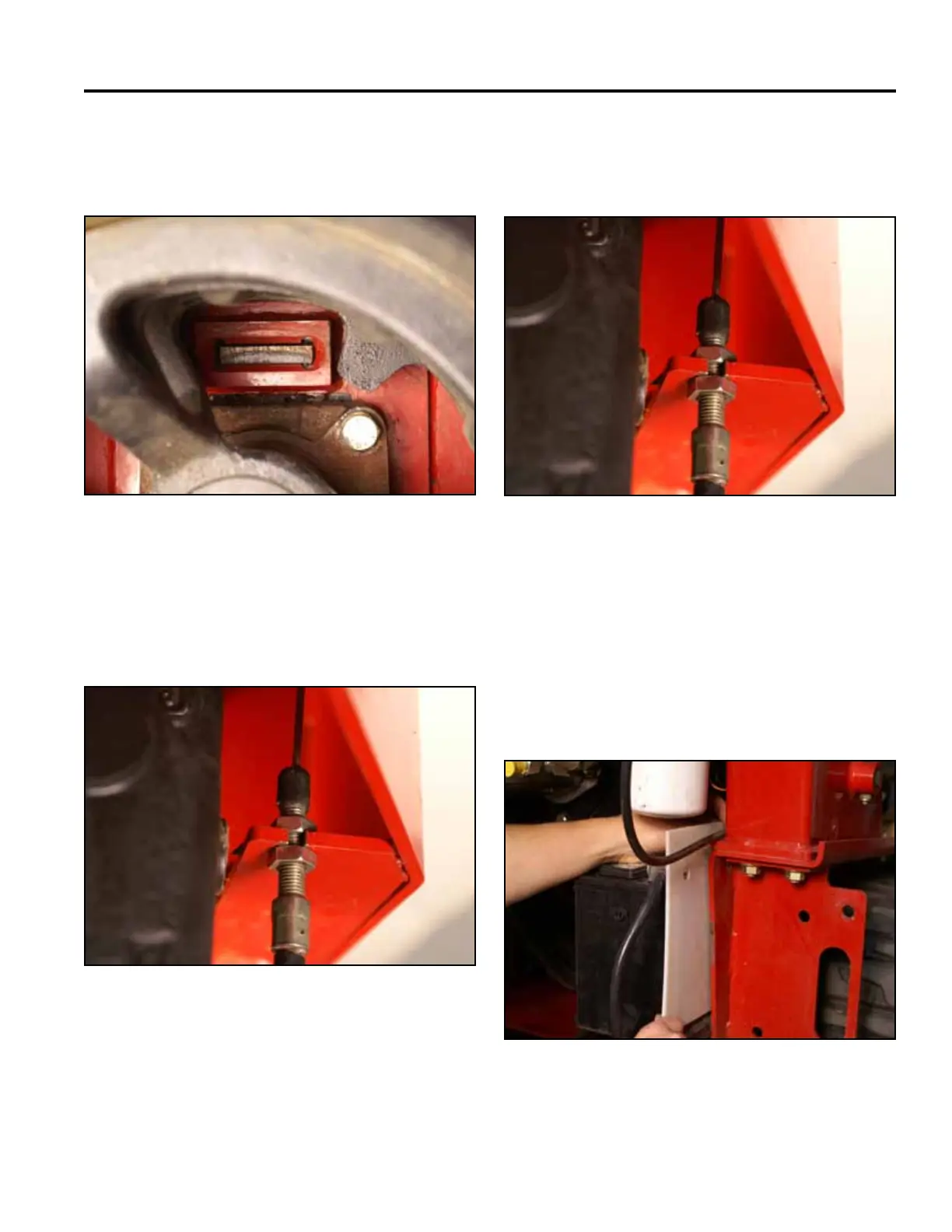

16. Check the placement of the brake plates. Each
brakeplateshouldbeushwiththeframe(Fig.
1688).
Fig 1688 PICT-4332
Note: If the brake plates extend out past the frame,
the brake cable adjustment nuts should be
adjusted upward on the brake cable adjust-
ment threads (Fig. 1689).
Fig 1689 PICT-4340
17. Tighten the two jam nuts. Slide the rubber boot over
the end of the brake cable adjustment threads (Fig.
1690).
Fig 1690 PICT-4340
18. Slide the battery partially into the battery mount.
Install the positive battery cable to the positive
battery terminal. Slide the battery farther into the
battery mount. Install the negative battery cable to
the negative battery terminal. Slide the battery guard
in between the battery and the frame so that the hole
in the guard lines up with the battery clamp mounting
hole in the frame (Fig. 1691).
Fig 1691 PICT-4330
