BRAKES
8-14 Rev. 000 TX525 Service Manual
12. Position the brake handle in the OFF position.
Note: If the handle does not rest at the back of the
OFF slot, the brake cable adjustment nuts
should be threaded further onto the brake
cable adjustment threads.

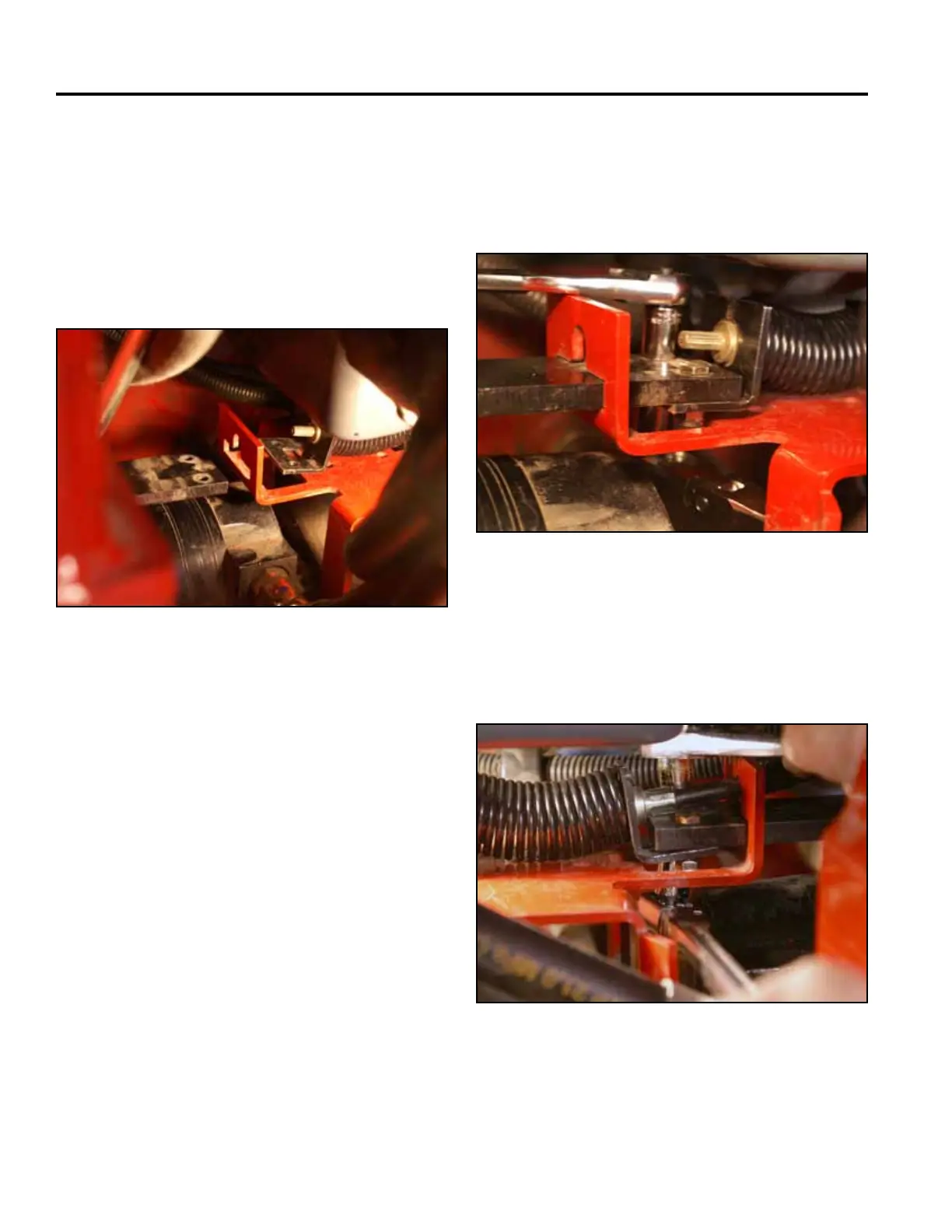

13. Push the 2 brake plates inward toward the brake
plate mounting brackets (Fig. 1685).
Fig 1685 PICT-4327
14. Using two 7/16” sockets, install 2 bolts and nuts
to secure the left hand brake plate to the brake
mounting bracket (the socket/ratchet on the bolt
head should be a 1/4” drive to clear the oil pan) (Fig.
1686).
Fig 1686 PICT-4325
15. Using two 7/16” sockets, install 2 bolts and nuts
to secure the right hand brake plate to the brake
mounting bracket (the socket/ratchet on the nut
should have a long handle) (Fig. 1687).
Fig 1687 PICT-4320a
