8. Markthesuctionfuellineandtankttingwithan“S”
andthereturnfuellineandtankttingwithan“R”
(Fig. 1705):
S - Fuel suction line
R - Fuel return line

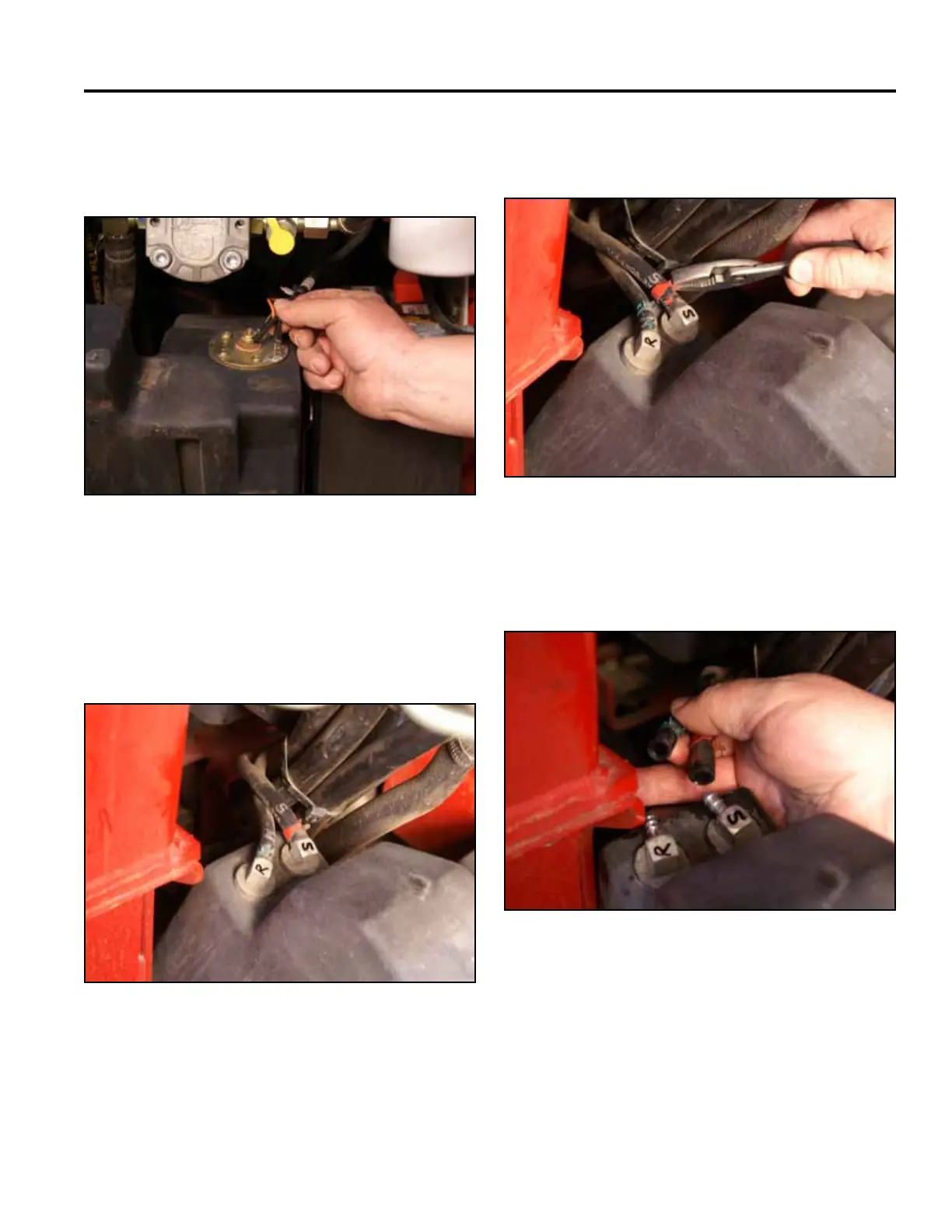

Fig 1705 PICT-4263
7. Disconnect the two wires (black and orange) from
the fuel sending unit located on the top of the fuel
tank (Fig. 1704).
9. Slide the 2 fuel hose clamps down the fuel line away
fromthefueltankttings(Fig.1706).
Fig 1706 PICT-4264
Fig 1704 PICT-4262
10. Slidethe2fuellinesoffthefueltankttings.Re-
move the fuel tank (Fig. 1707).
Fig 1707 PICT-4265
