BRAKES
8-38 Rev. 000 TX525 Service Manual

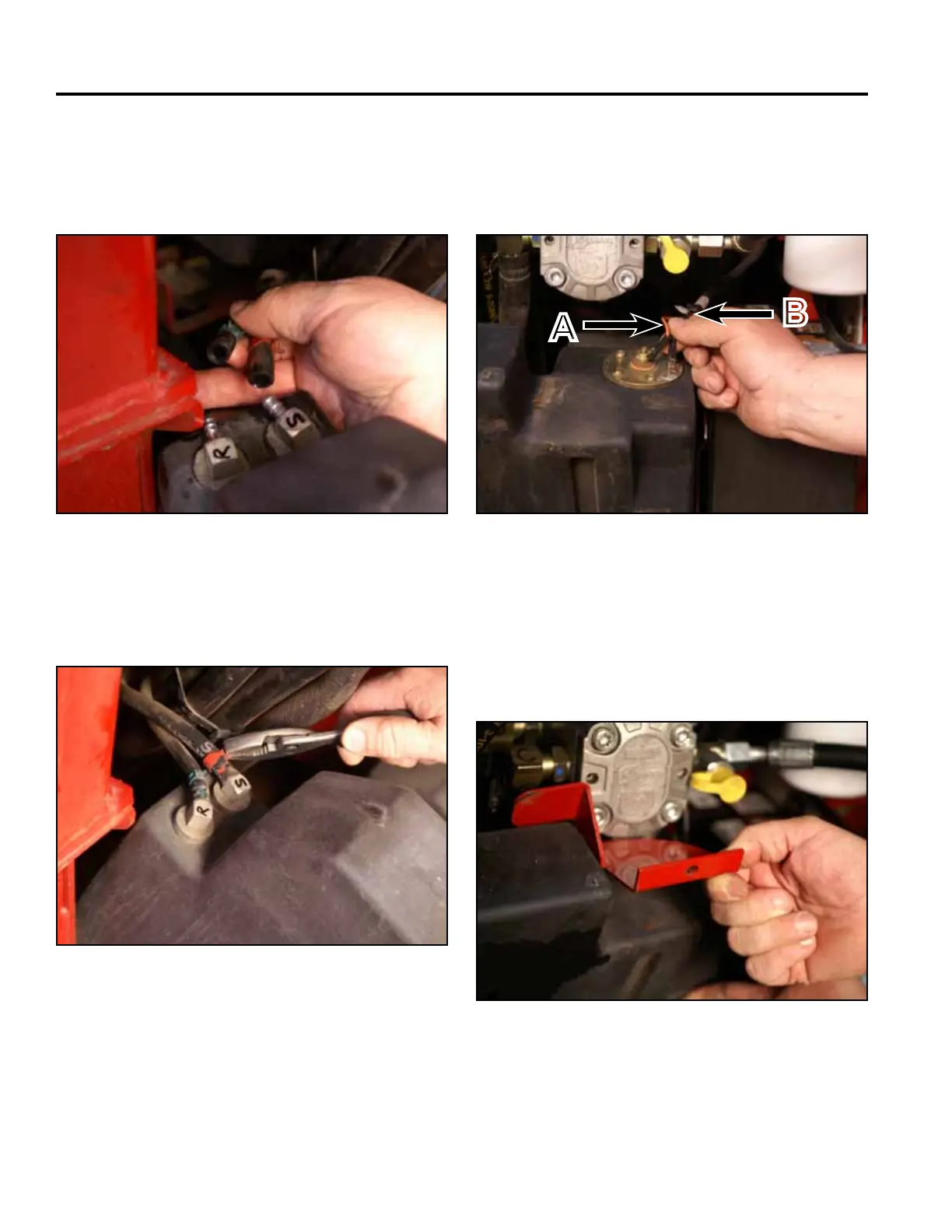

8. Position the 2 fuel hose clamps to secure the fuel
linestothefueltankttings(Fig.1776).
Fig 1776 PICT-4264
9. Position the fuel tank into the rear end of the frame.
Connect the two wires (black and orange) to the fuel
sending unit located on the top of the fuel tank (Fig.
1777).
7. Slidethe2fuellinesontothefueltankttings.Note
the location markings (Fig. 1775).
S - Fuel suction line
R - Fuel return line
Fig 1777 PICT-4262 Fig 1775 PICT-4265
A. Center terminal (orange wire)
B. Outside terminal (black wire)
A
B
10. Position the fuel tank bracket onto the fuel tank (Fig.
1778).
Fig 1778 PICT-5626
